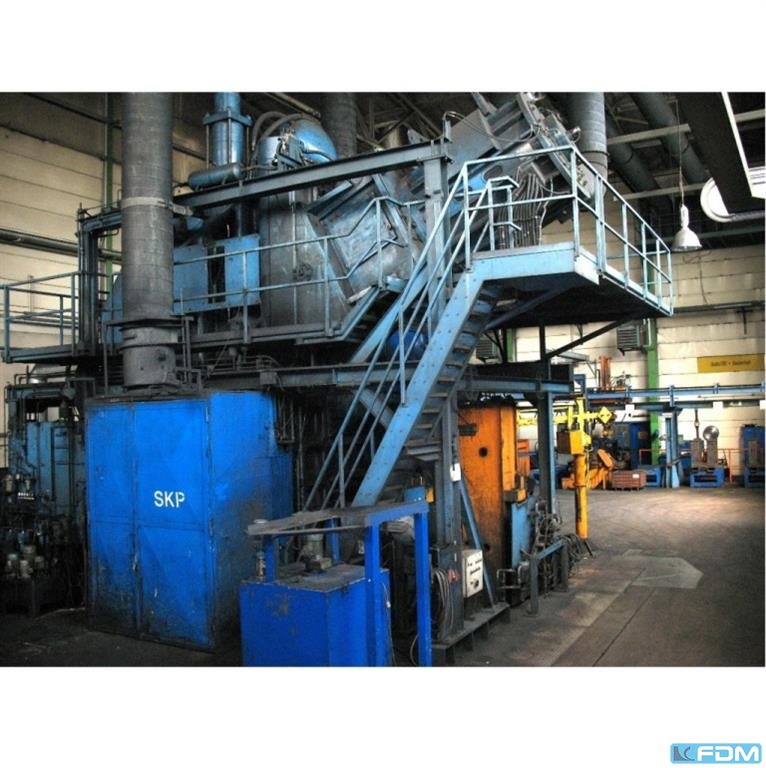

LASCO SKP 2500 forging press
usatoVenditore verificato
Richiedi il prezzo
Direttamente al venditore
1 / 5
Dati tecnici
· ID 170392396Macchine usate
- Condizioni
- usato
- Anno di costruzione
- 1983
- Ubicazione
- Lager Kehl
Identifikation
ProduttoreLASCO
ModelloSKP 2500
Numero articolo1050-073066
Technik
Quantità1
Descrizione
nominal force:2500 t
stroke:600 mm
cycle time:13 - 18 s
distance between columns:1720 mm
Distance table/ram, max. stroke up, adjustment up:2600 mm
table surface area:1720 x 1800 mm
allowed max. force:4000 t
blow die to die:5000 t
ram surface:2100 x 1320 mm
capacity of ejector in table:40 t
ejector stroke in table:250 mm
ejector surface area in table:900 x 820 mm
capacity of ejector in ram:6 t
ejector stroke in ram:40 mm
spindle diameter:425 mm
power requirement:900,0 kW
weight:335,0 t
Dimensions (WxDxH):3,4 x 4,6 x 9,7 m
height over floor:8,3 m
fully-automated forging line:to produce axle shaft
stroke:600 mm
cycle time:13 - 18 s
distance between columns:1720 mm
Distance table/ram, max. stroke up, adjustment up:2600 mm
table surface area:1720 x 1800 mm
allowed max. force:4000 t
blow die to die:5000 t
ram surface:2100 x 1320 mm
capacity of ejector in table:40 t
ejector stroke in table:250 mm
ejector surface area in table:900 x 820 mm
capacity of ejector in ram:6 t
ejector stroke in ram:40 mm
spindle diameter:425 mm
power requirement:900,0 kW
weight:335,0 t
Dimensions (WxDxH):3,4 x 4,6 x 9,7 m
height over floor:8,3 m
fully-automated forging line:to produce axle shaft
