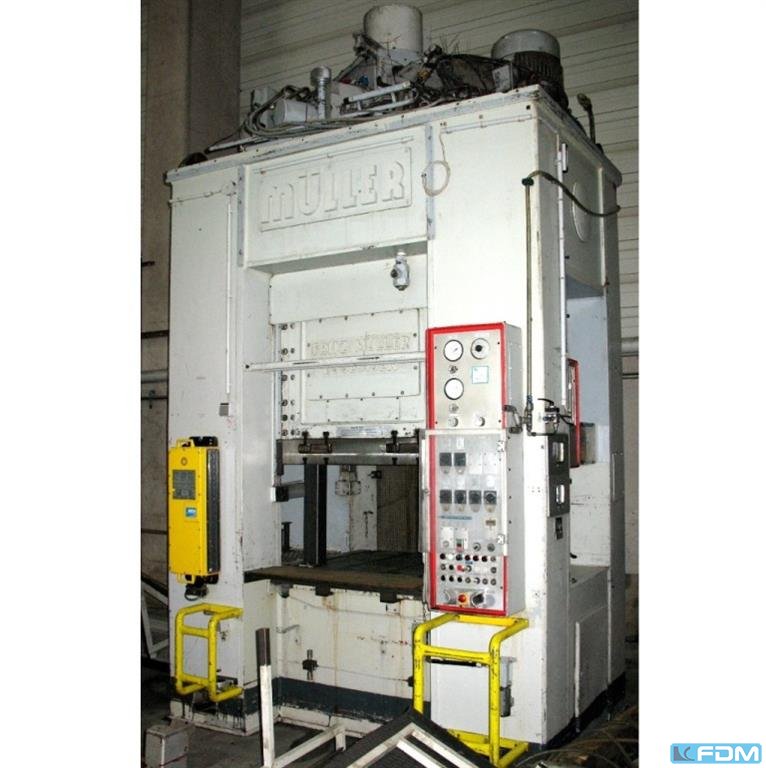

MUELLER SDZ 250/200.3.1 (UVV) Hydraulic Double-Column (Drawing) Press
usatoVenditore verificato
Richiedi il prezzo
Direttamente al venditore
1 / 1
Dati tecnici
· ID 170392398Macchine usate
- Condizioni
- usato
- Anno di costruzione
- 1980
- Ubicazione
- Lager Eislingen, Baden-Württemberg
Identifikation
ProduttoreMUELLER
ModelloSDZ 250/200.3.1 (UVV)
Numero articolo1050-073082
Technik
Quantità1
Descrizione
pressure:250 t
distance between columns:1125 mm
stroke:250 mm
distance table/ram, max. stroke up, adjustment up:800 mm
table surface area:1100 x 900 mm
pressure of drawing cushion in table:63 t
stroke of drawing cushion in table:100 mm
die cushion area:700 x 400 mm
table height over floor:960 mm
side window:700 mm
ram surface:1080 x 900 mm
oil volume:1000 l
power requirement:35,0 kW
weight:23,0 t
Dimensions (WxDxH):2,5 x 2,3 x 4,5 m
German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
light guard:Sick
foundation pit:not necessary
distance between columns:1125 mm
stroke:250 mm
distance table/ram, max. stroke up, adjustment up:800 mm
table surface area:1100 x 900 mm
pressure of drawing cushion in table:63 t
stroke of drawing cushion in table:100 mm
die cushion area:700 x 400 mm
table height over floor:960 mm
side window:700 mm
ram surface:1080 x 900 mm
oil volume:1000 l
power requirement:35,0 kW
weight:23,0 t
Dimensions (WxDxH):2,5 x 2,3 x 4,5 m
German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
light guard:Sick
foundation pit:not necessary
