lavorazione della lamiera usati in vendita (3,285)

: neu : 2024 : 9738 : prompt, Zwischenverkauf v : Türkei : 20300 €: 389.76 €: 1 : 1530 mm: 6 mm: 6 mm: 4 mm: 150 mm: 4 kW: 3100 mm: 1120 mm: 1020 mm: 2100 kg3 rollsAsymmetrical rolls arrangement - with pre-bending2 driven rollsMotorized adjustment of lateral and clamping rollDigital read-out for lateral and clamping rollSwiveling top roll to the frontForward/reverse runHardened rollsMoveable control panelUser manual in GERMAN and ENGLISH(sample photo)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 10 Wochen ab Auftrags : Türkei : 6400 €: 123.52 €: 1270 mm: 2.5 mm: 90 mm: 6 m/min: 1.1 kW: 1850 mm: 700 mm: 1200 mm: 520 kg3 rollsasymmetric rolls - prebending2 rolls driven by brakemotorlateral roll adjustable by handwheellongitudinal grooves in lower and lateral rolltiltable upper rollright / left rotation with double foot switchconical rolling deviceuser manual in GERMAN or ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : 2024 : 9741 : prompt, Zwischenverkauf v : Türkei : 6200 €: 119.66 €: 1 : 1050 mm: 3 mm: 90 mm: 6 m/min: 1.1 kW: 1630 mm: 700 mm: 1200 mm: 480 kg3 rollsasymmetric rolls - prebending2 rolls driven by brakemotorlateral roll adjustable by handwheellongitudinal grooves in lower and lateral rolltiltable upper rollright / left rotation with double foot switchconical rolling deviceuser manual in GERMANThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 12 Wochen ab Auftrags : Türkei : 33000 €: 630.3 €: 2530 mm: 6 mm: 6 mm: 4 mm: 190 mm: 5.5 kW: 4250 mm: 1200 mm: 1150 mm: 3750 kg3 rollsAsymmetrical rolls arrangement - with pre-bending2 driven rollsMotorized adjustment of lateral and clamping rollDigital read-out for lateral and clamping rollSwiveling top roll to the frontForward/reverse runHardened rollsMoveable control panelUser manual in GERMAN and ENGLISH(sample photo)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 10 Wochen ab Auftrags : Türkei : 52700 €: 996.03 €: 2550 mm: 10 mm: 10 mm: 8 mm: 8 mm: 6 mm: 245 mm: 245 mm: 180 mm: 1,5 / 6 m/min: 7.5 kW: 4800 mm: 1600 mm: 1470 mm: 6170 kg4 rollsTop rolll driven by hydromotor and planetary gearbox, bottom roll driven by gear and cardan systemPinch roll and latereal rolls move with hydraulic cylindersDigital read-out for lower and side rolls positionHardened rollsConical bending deviceHydraulic load relieving of upper rollHydraulic drop-end bearing2 working speedsProtectionagainst overloadMoveable control paneAccording to CE rulesOPTIONAL EQUIPMENT:Infinitely adustable speed of rollsHydraulic side supportHydraulic top supportNC controlIMPORTANT ISSUES AT CONICAL BENDING:The max. sheet metal thickness isequivalent to 50 % of nominal capacityThe cone length can be max. 30 % oremust be more than 60 % of roll lengthHardened rolls are recom ...

: neu : ca. 8 Wochen ab Auftragse : Spanien : 15600 €: 299.52 €: 55 to: 750 mm: 40x10 mm: 37 1/min: 5 kW: 1930 mm: 1200 mm: 1800 mm: 1885 kghydr. driveSupport table with stopOperating instructions in GERMAN and ENGLISHCNC options on requestWe have an extensive stock of punches and dies at your immediate disposal.WE HAVE MORE THAN 700 REFERENCES!The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 12 Wochen ab Auftrags : Türkei : 15900 €: 305.28 €: 50 - 60 mm: 180 mm: 180 mm: 180 mm: 3 : 3.75 kW: 6 m/min: 60x10 mm / 500 mm, 20x5 m : 80x20 mm / 500 mm, 50x5 m : 32x32 mm / 400 mm, 12x12 : Ø 35 mm / 350 mm, Ø 10 mm : Ø 60x2 mm / 600 mm, Ø 15 : 50x25x3 mm / 450 mm, 20x1 : 45x3 mm / 600 mm, 20x2 mm : 60x60x6 mm / 650 mm, 30x3 : 50x50x5 mm / 550 mm, 30x3 : UPN 80 / 600 mm, UPN30 / : UPN 65 / 600 mm, UPN 30 / : IPN 80 / 600 mm : 1200 mm: 850 mm: 1200 mm: 955 kg3 mech. driven rolls (brake motor)hardened shafts lower rolls hydraulic adjustablehardened universal rollslateral rolls adjustable in 1 axishorizontal and vertical operationdigital read out for the position of the lower rollsmachine and equipment accordingto the CE regulationsuser manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 10 Wochen ab Auftrags : Türkei : 16600 €: 318.72 €: 1050 mm: 6 mm: 30 1/min: 2.3 °: 750 mm: 7,5 kW: 800 mm: 530 mm: 1355 mm: 1720 mm: 1630 mm: 1230 mm: 2000 kgThe machines feature a robust, welded steel frame for maximum cutting precisionMotorized back gauge 750 mm, ball screw spindles, NC control2 cutting edges on the upper blade and 4 cutting edges on the lower blade1000 mm squaring arm with scale, T-slot, and flip stop2 support armsMechanical downholderManual cutting gap adjustment on the frontBalls in the tableCutting line illuminationFoot pedalEmergency stop buttonOperating manual with EC declaration of conformity.INCLUDES THE FOLLOWING OPTIONAL EQUIPMENT:Blades suitable for cutting stainless steelRear light barrier protectionThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

throat: 1100 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

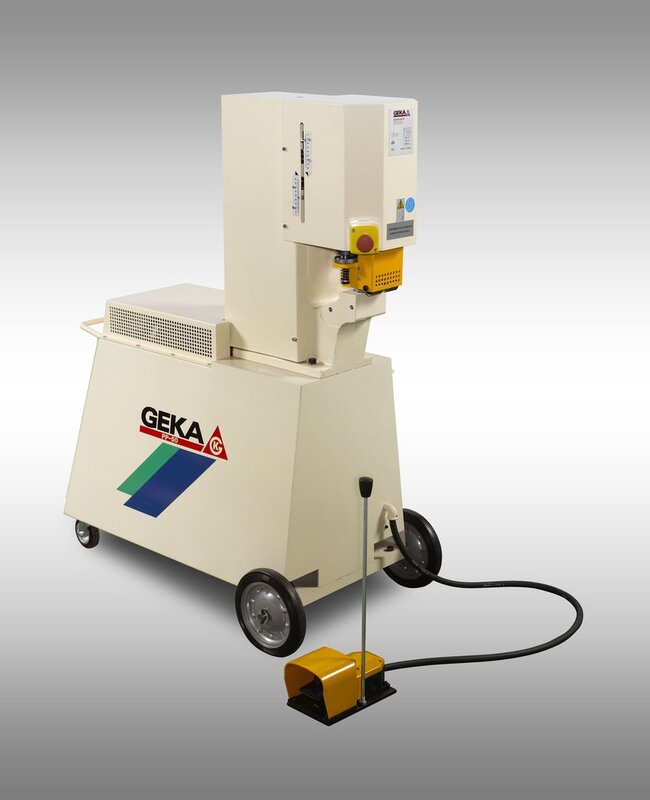

punching force max.: 50 tthroat: 510 mmstroke: 32 mmstroke - stepless adjustable: 10 - 32 mmno. of strokes: 35 bei 10 mm Hub/minWorking height: 1070 mmdaylight: 350 mmtable width: 255 mmdimensions: ca. 1080 x 650 x 1680 mmmaterial layer: 630 X 535 weight: ca. 1400 kgScraper, height-adjustable and removable, with interchangeable plateHydraulic low-pressure finder for foot switch operationTwo-stage foot switch and electrical controlsIntegrated hydraulic unitWith punching saddle for dies no. 3 and 4, up to Ø 39.5 mmQuick-change device for punches 3 and 6 up to Ø 39.5 mmPeddinghaus blue serieswith material support table no. 513, dimensions 630 x 535 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

material width:600 mmmaterial thickness: - 4,0 mmno. of straightening rolls:21 straightening roll diameter:30 mmmaterial cross-cut:1800 mm²speed:6 - 36 m/minPower capacity:4,5 kWWeight:2,0 tDimensions (WxDxH):1,5 x 2,0 x 1,9 m

sheet width:5040 mmplate thickness:2 mmtotal power requirement:12 kWweight of the machine ca.:9,4 tdimensions of the machine ca.:6200× 1300 ×1900 mmworking width:5000 mmcontrol:Fasti Matik stroke of upper beam:500 mmadjustment of lower beam:u.Biegewange 80 mmcontrol cabinet:1000 x 850 x1450 mmDocuments:vorhanden

material width:70 mmmaterial thickness:0 - 1,5 mmfeed length:100 mmmaterial cross-cut:60 mm²feeding force:400 Nclamping force of feeding pincer:1300 Nair pressure - required:3 - 6 barWeight:0,01 tDimensions (WxDxH):0,4 x 0,4 x 0,7 m

band width:2000 mmplate thickness:1.8 mmnumber of rolls:13 Controls:SIEMENS DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diameter of coil:2000 mm - min. internal diameter of coil:610 mmFEEDERS:. - sheet width max:2000 mm - sheet thickness max:2 mm - feeding step max.:4000 mmLEVELER UNIT:. - sheet width max:2000 mm - sheet width (min):400 mm - sheet thickness max:1.8 mm - sheet thickness (min):0.6 mm - number of leveler rolls:13 - diameter of leveler rolls:50 mm

Produttore: Geka (Maquinaria Geka S.A., Spagna) Modello: HYD 110 Controller CNC: Inter Imex PT 500 Anno di produzione: 1997 Numero di serie: 16306 Tipo di macchina: Macchina idraulica per punzonamento e taglio (operaio siderurgico) Forza massima di colpo: 110 t Profondità della gola: 250 mm Corse al minuto (20 mm corsa): 37 /min Capacità di perforazione (foro Ø x spessore): 40 x 10 mm Capacità di intacamento: 10 mm Capacità in acciaio piatto: 300 x 15 mm o 200 x 20 mm Capacità dell'acciaio angolata 90°: 120 x 120 x 10 mm Capacità dell'acciaio angolare 45°: 70 x 70 x 7 mm Capacità del bilanciere rotondo: Ø 40 mm Capacità della barra quadrata: 40 mm Modalità operative: Manuale / Automatico Funzioni: Punzonamento, taglio a barra piatta, taglio angolare, taccatura, taglio della barra Fermata d'emergenza: Sì Condizione: Usato, condizioni industriali, segni di usura coerenti c ...

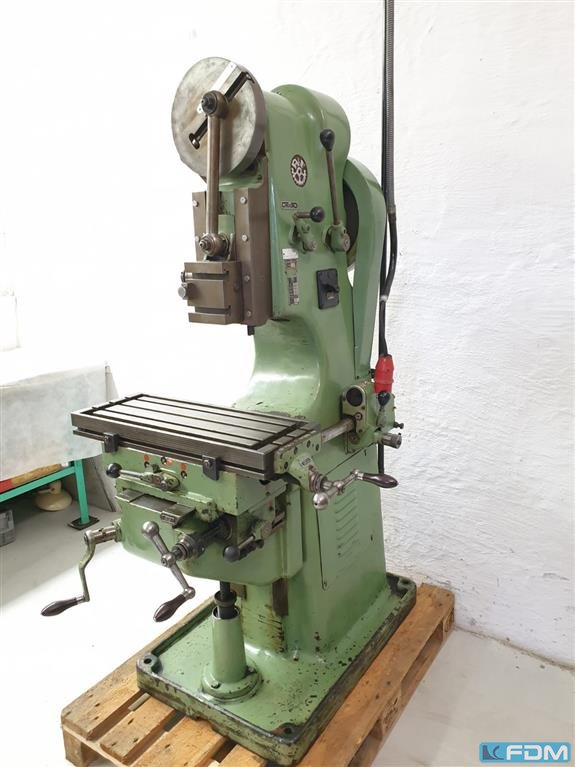

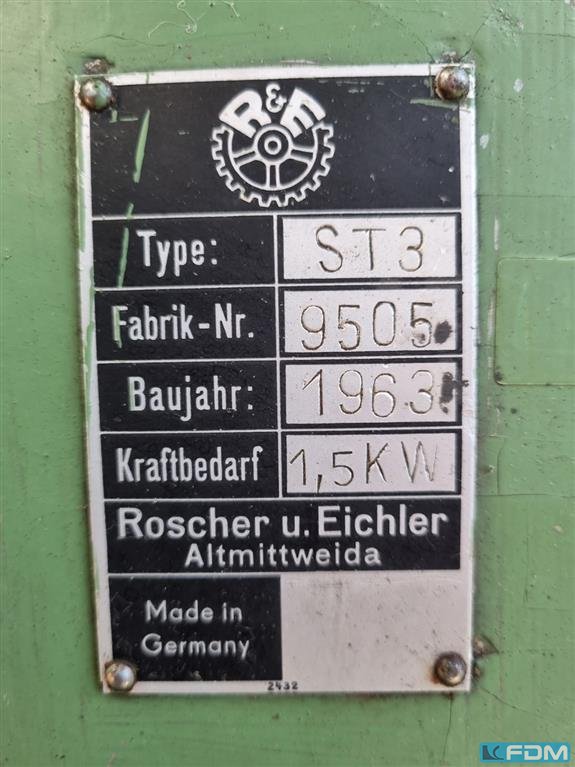

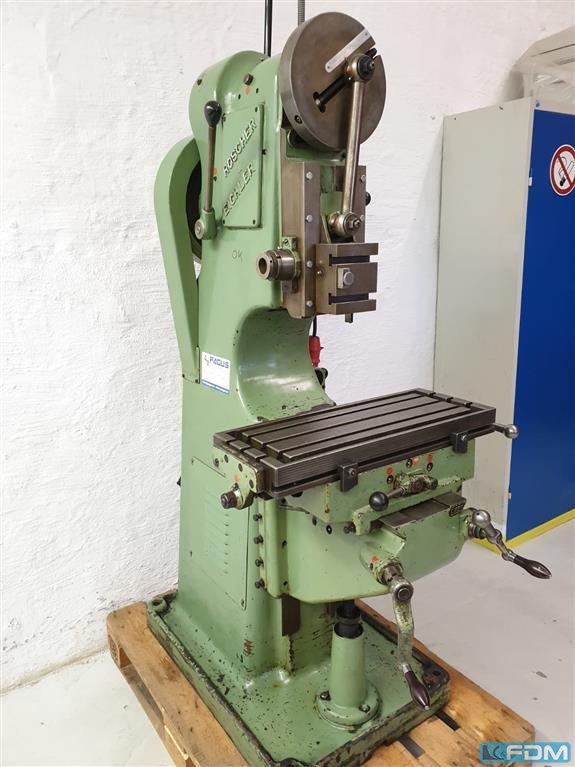

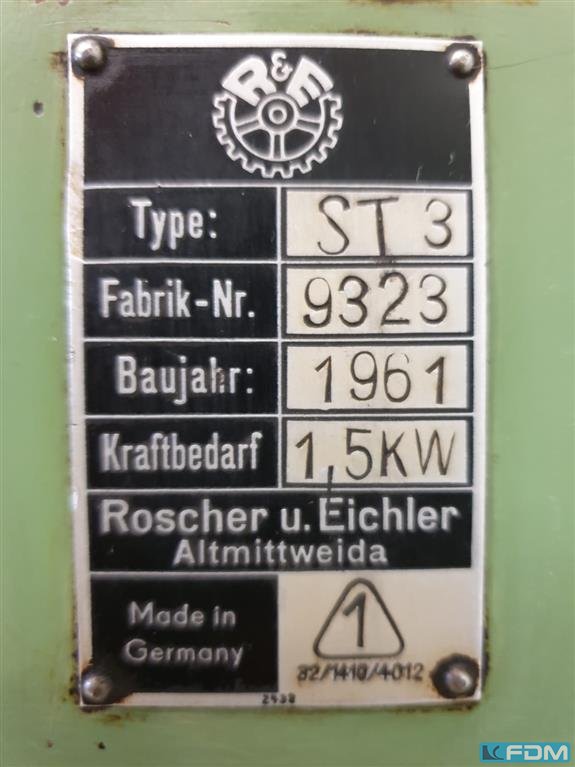

max. ram stroke:220 mmtotal power requirement:1,5 kWweight of the machine ca.:880 kgdimensions of the machine ca.:1.500 x 1.000 x 2.200 mmslot-milling length:220 mmtoolhead swivelling: +/- 10° ° Gradtable::650 x 250 mmtable adjustment: vertical:360 °mmtable adjustment: quer/längs: 170/400 °mmstrokes per minute:45 / 78 / 125 Hub/min feed:: 0,1 / 0,2 / 0,3 in 3 step

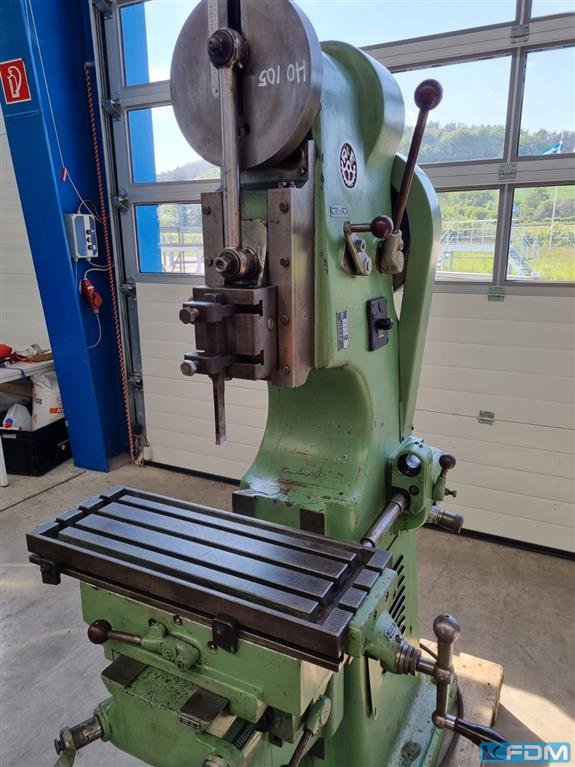

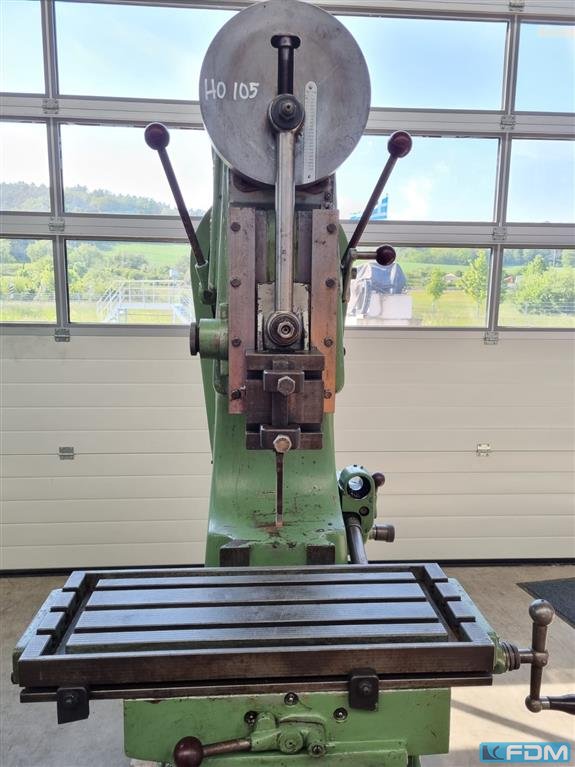

max. ram stroke:220 mmtotal power requirement:1,5 kWweight of the machine ca.:880 kgdimensions of the machine ca.:1.500 x 1.000 x 2.200 mmslot-milling length:220 mmtoolhead swivelling: +/- 10° ° Gradtable::650 x 250 mmtable adjustment: vertical:360 °mmtable adjustment: quer/längs: 170/400 °mmstrokes per minute:45 / 78 / 125 Hub/min feed:: 0,1 / 0,2 / 0,3 in 3 step

material width:180 mmcoil weight:0,75 tmaterial thickness:2,0 - 6,0 mmcoil external diameter:400 - 1250 mmno. of straightening rolls:5 number of draw-in rolls:2 band speed:20 m/minpower requirement:4,0 kWweight:2,8 tdimensions (WxDxH):1,4 x 2,45 x 1,85 msnubber roll:pneumatic

material width:150 mmmaterial thickness:1,5 mmpower requirement:3,0 kWno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:4 weight:0,67 tDimensions (WxDxH):1,3 x 1,1 x 1,6 m

material width:150 mmmaterial thickness:2,5 mmfeed length:100 mmcompressed air:6 barclamping force of fastening pincer:2000 Nclamping force of moving pincer:2000 Nfeeding force:1200 Nweight:0,1 tDimensions (WxDxH):0,35 x 0,85 x 0,5 m

material width:850 mmmaterial thickness:0,3 - 1,5 mmno. of straightening rolls:8 straightening roll diameter:40 mmnumber of draw-in rolls:2 diameter of draw-in rolls:160 mmmaterial thickness with 600 mm material width:1,9 mmmaterial thickness with 400 mm material width:2,3 mmspeed:5 - 25 m/minmin. material width:200 mmweight:2,8 tDimensions (WxDxH):1,6 x 2,2 x 2,3 m

material width:850 mmmaterial thickness:0,3 - 1,5 mmno. of straightening rolls:8 straightening roll diameter:40 mmnumber of draw-in rolls:2 diameter of draw-in rolls:160 mmmaterial thickness with 600 mm material width:1,9 mmmaterial thickness with 400 mm material width:2,3 mmspeed:5 - 25 m/minmin. material width:200 mmweight:3,1 tDimensions (WxDxH):2,2 x 1,5 x 2,8 m

material width:300 mmmaterial thickness:- 3,0 mmno. of straightening rolls:7 Stückstraightening roll diameter:60 mmweight:0,8 tDimensions (WxDxH):0,9 x 1,5 x 1,4 m

table length:2000 mmtable width:600 mmtable height:300 mmmounting surface:700 x 600 mmcentre distance:1200 mmcentre height:160 mmDimensions (WxDxH):2,0 x 0,6 x 0,3 m

material width:380 mmcoil weight:1,0 tmaterial thickness:2,5 mmcoil external diameter:1000 mmno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:2 diameter of draw-in rolls:90 mmweight:0,8 tDimensions (WxDxH):0,8 x 1,3 x 1,7 m

material width:500 mmmaterial thickness:0,6 - 1,6 mmno. of straightening rolls:7 straightening roll diameter:60 mmnumber of draw-in rolls:2 + 2 inlet roll diameter:60 mmmax. material thickness:2,0 mmmaterial thickness at 150 mm material width:2,0 mmmaterial thickness at 500 mm material width:1,6 mmweight:0,5 tdimensions (WxDxH):0,8 x 1,0 x 1,2 m

material width:400 mmcoil weight:3,0 tmaterial thickness:0,5 - 4,0 mmcoil internal diameter:460 - 530 mmcoil external diameter:1500 mmno. of straightening rolls:9 straightening roll diameter:50 mmno. of lower support rolls:12 no. of upper support rolls:10 diameter of support rolls:90 mmmaterial cross-cut:1600 mm²speed of coil line:0 - 20 m/minpower requirement:35,0 kWweight:10,5 tdimensions (WxDxH):10,0 x 2,5 x 2,9 mstraightening machine:KRE 50.400/9 adjustment of straightening rolls :motoric insertion wedge:hydraulic adjustable decoiler:3000.1 snubber roll:hydraulic expansion:hydraulic sideway adjustment:motoric pivoting:manual roll feed:Servo; WVE 160/400 intermittant lifting:hydraulic

material width:300 mmmaterial thickness:0,6 - 2,5 mmno. of straightening rolls:7 straightening roll diameter:60 mmnumber of draw-in rolls:2 + 2 diameter of draw-in rolls:60 mmmax. material thickness:3,5 mmmaterial thickness at 30 mm material width:3,0 mmmaterial thickness with 300 mm material width:2,5 mmweight:0,3 tDimensions (WxDxH):0,9 x 1,0 x 1,1 m

material width:550 mmmaterial thickness:0,4 - 1,6 mmno. of straightening rolls:11 straightening roll diameter:60 mmnumber of draw-in rolls:4 diameter of draw-in rolls:60 mmband speed:4 - 50 m/minpower capacity:3,0 kWweight:1,7 tDimensions (WxDxH):2,5 x 2,0 x 1,7 m

material width:320 mmcoil weight:2,6 tmaterial thickness:0,5 - 2,0 mmcoil internal diameter:400 - 510 mmcoil external diameter:1200 mmno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:2 band speed:0 - 30 m/minpower capacity:1,5 kWweight:1,5 t
