macchine per taglio ingranaggi e dentatrici usati in vendita (208)

max. wheel diameter:200 mmgear width:50 mmmax. module:6 table diameter:168,14 mmboring diameter:65,532 mmweight of the machine ca.:11 ttable turning speeds:0-1.000 U/minlength of stroke min./max.:0-70 mmno. of strokes:180-1.800 StückThis machine can be used to make tandler gears. However, for helical gearing, a helical guide is also required.

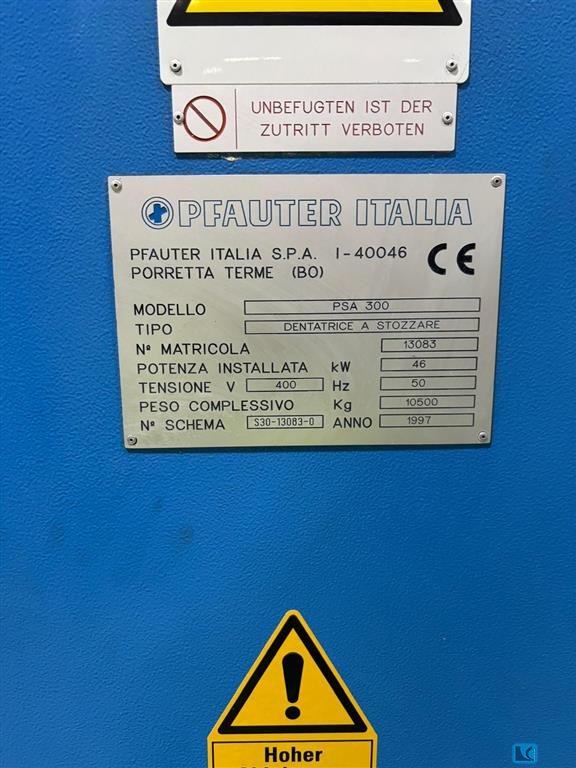

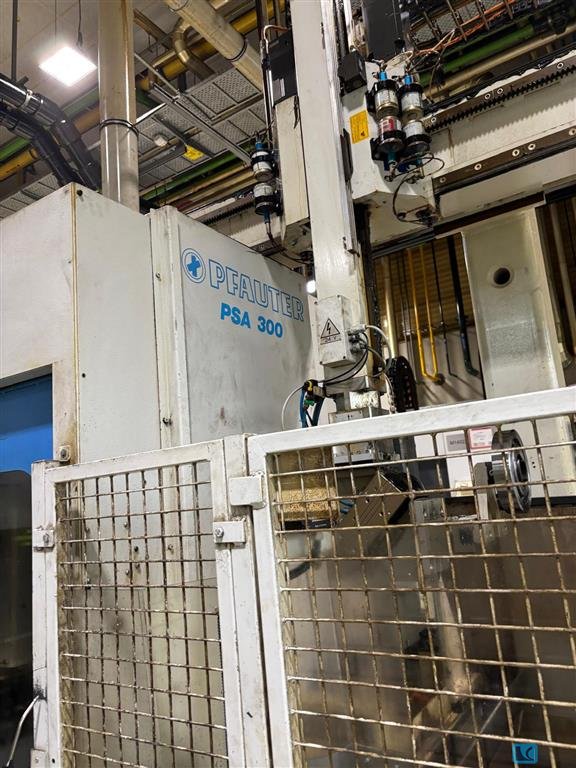

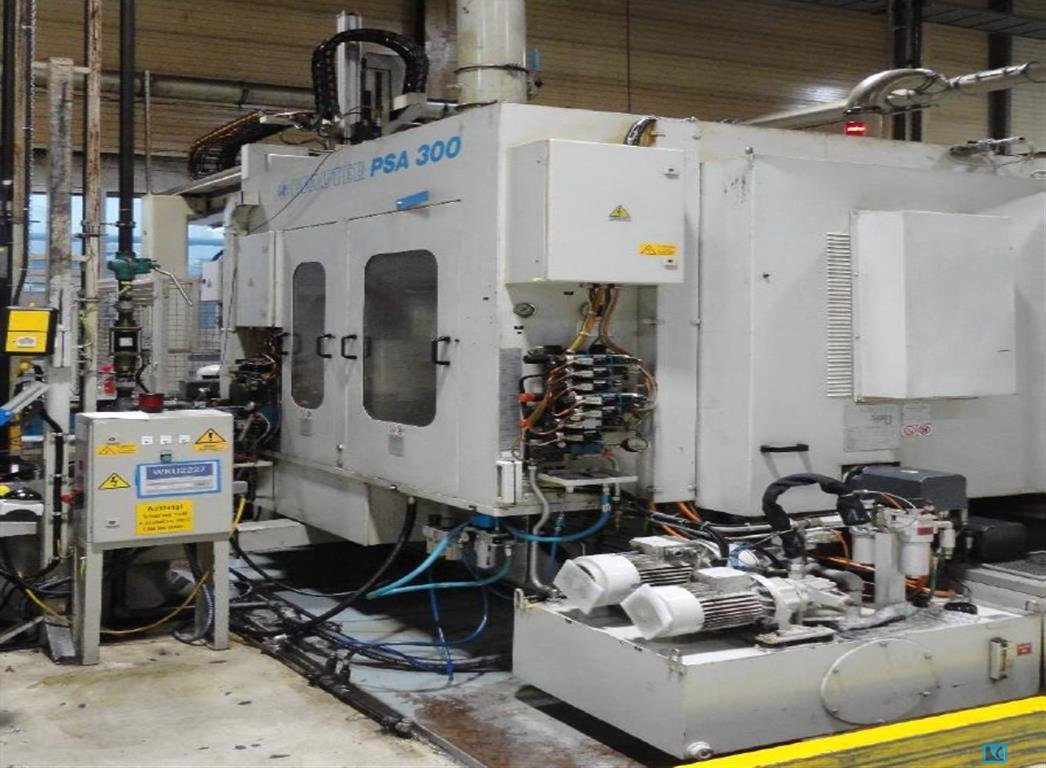

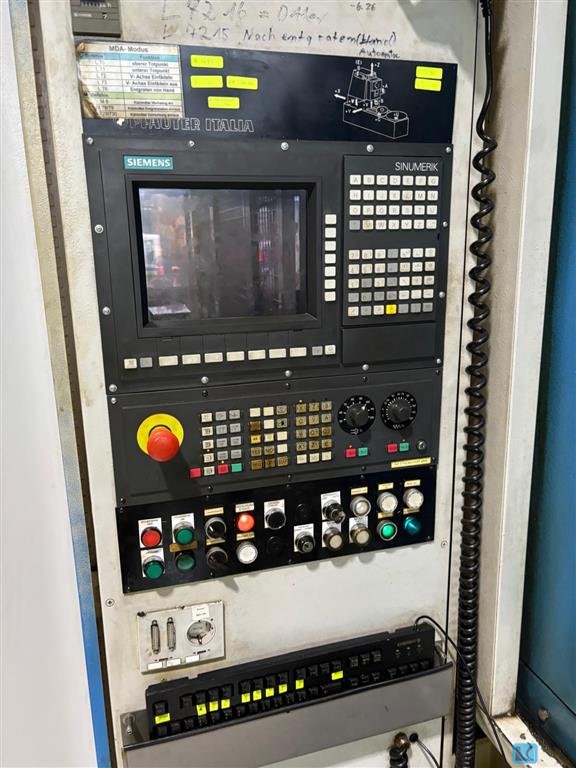

max. wheel diameter:300 mmgear width:110 mmmax. module:6 weight of the machine ca.:10,5 t

max. wheel diameter:210 mmtotal power requirement:60 kWweight of the machine ca.:8 tdimensions of the machine ca.:2,85 x 2,60 x 1,80 mgrinding slide feed:700 mmgrinding slide feeds:1-15.000 m/minmax. workpiece weight:150 kgcentre height:260 mmgrinding wheel diameter:240 mm

rotor dia:30-500 mmhobbing length:500-1000 mmtotal power requirement:80 kWweight of the machine ca.:15 tdimensions of the machine ca.:3,6 x 2,5 x 3,0 mmax. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

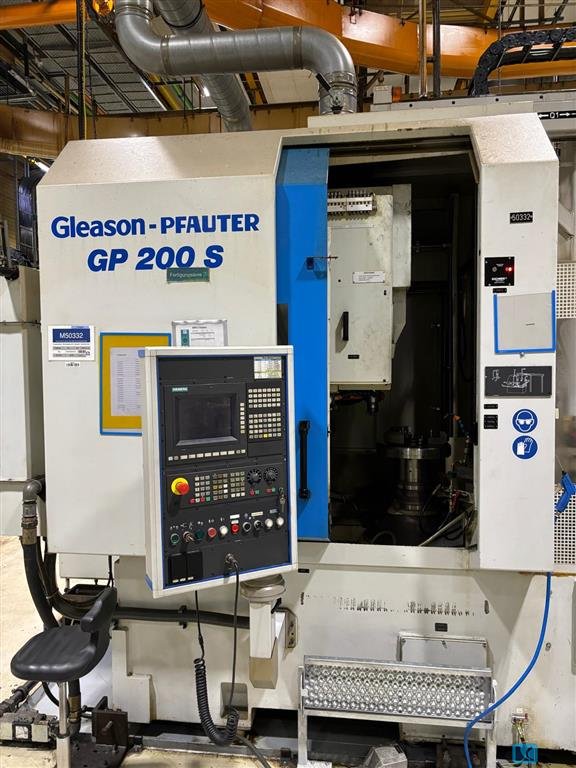

max. wheel diameter:180 mmmax. module:7 hob turning speeds:200-2000 U/minmin. number of teeth:4 excluding conveyor belt

max. wheel diameter:275 mmgear width: mmmax. module: weight of the machine ca.:9,4 tdimensions of the machine ca.:3,7 x 3 x 2,82 mmin. number of teeth:5 max. number of teeth:2000 range of tooth size:20 mmmax. gear width (internal machining):58 mmX-axis:325 mmy-axis:350 mmZ-axis:475 mmBevel gear milling machine Gleason Pfauter including Promot Automation

max. module:7 weight of the machine ca.:5 tworm grinding diameter:280-350 mmwidth of grinding worm:84-104 mmmin. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mmmax. workpiece weight:60 kgwithout filter

max. wheel diameter:780 mmgear width:130 mmmax. module:10 weight of the machine ca.:8,5 tno. of strokes:30 Hub/minHier fully functional machine, Little usedThere are some Tools and Change gearsLiebherr WSC501 CNC gear shaping machine, used, ready for useManufacturer: LiebherrType: WSC 501Mach.- No.: 4407/05Year of manufacture: 1985Details:Max. gear shaping module: 8mm(30°gears possible up to module 10°)Max. gear width: 130mmDiameter of the machine table: 500mmMaximum wheel diameter: 780mmShut height ? table: 650mmStroke rate min. 30DH/minContinuously adjustable max. 1500 DH/min.Operating voltage: 380VFrequency: 50HzControl voltage: 110VConnected load: 36 kVARated current: 55AWeight: 8500kgDimensions: approx. 4,85 x 3,655 x 3,78(width x depth x height in m)The machine has seen only very limited use in our company. It remains fully operational and can be demonstrated in function upon a ...

max. wheel diameter:80/120 mmmax. module:2,5 max. top circle diameter:65 mm:22 mm:140 mm:120 mmslide travel axial ( Z-axis ):320/400 mmDimensions (L/W/H):3270 x 3240 x 2020 mmweight of the machine ca.:6 tP60 - The compact all-rounder for wheels, shafts and wormsThe P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms.with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1

max. wheel diameter:150 mmgear width:350 mmmax. module:4 total power requirement:48 kWweight of the machine ca.:13 tdimensions of the machine ca.:4,88 x 4,40 x 3,56 mspindle turning speed range:100-1000 U/minInfeed and outfeed chain conveyor, with tool holders, chip conveyor, hydraulic unit and air conditioning.

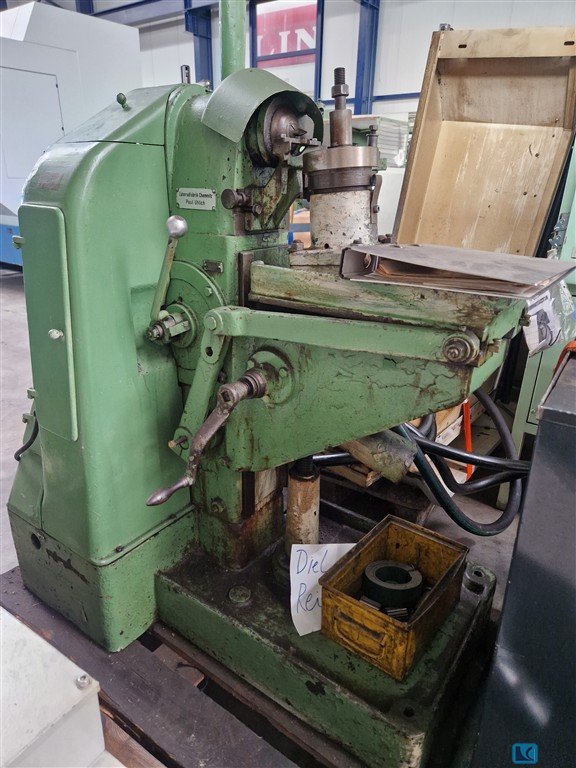

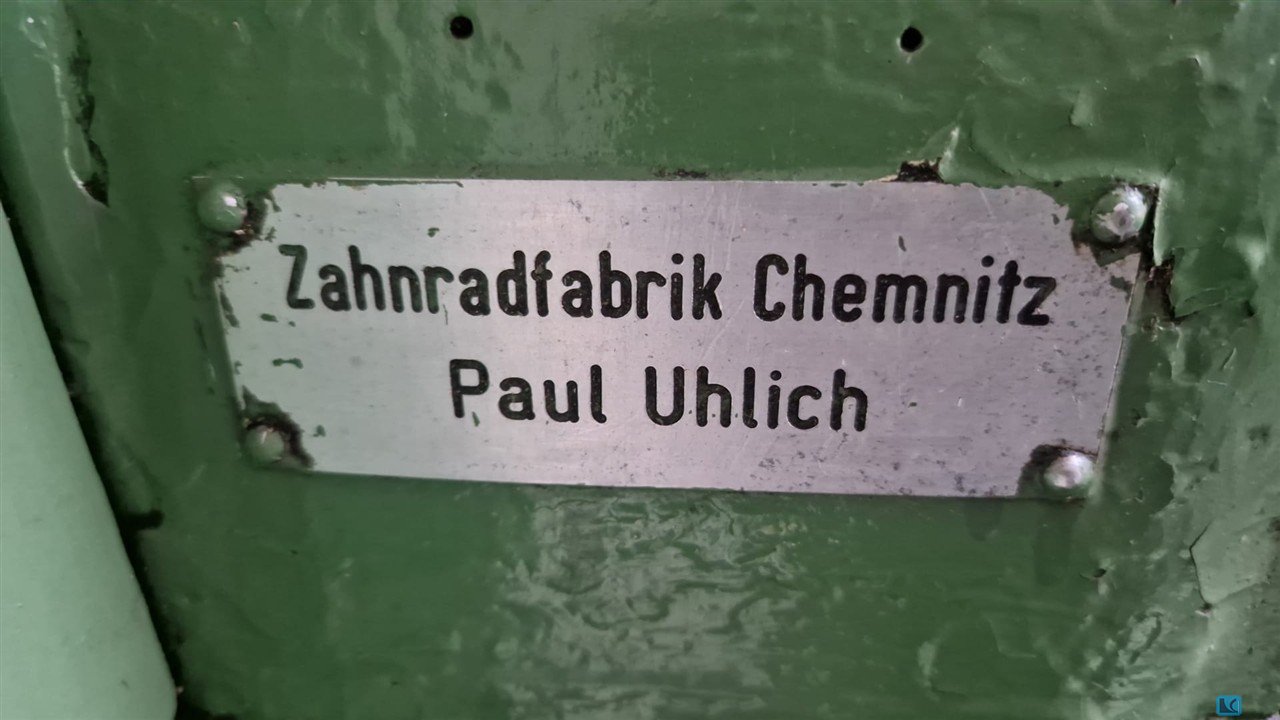

max. wheel diameter:600 mmmax. module:6 weight of the machine ca.:0,9 tdimensions of the machine ca.:1,52 x 0,91 x 1,45 m

max. wheel diameter:300 mmmax. module:7 weight of the machine ca.:15 ttable turning speeds:100 U/mintable diameter:180 mmhob turning speeds:750 U/minmax. hob diameter:300 cutter length max.:230 mmLiebherr LC300 with loading automation Machine including counter holderThe machine used to work with emulsion

max. wheel diameter:300 mmmax. module:7 weight of the machine ca.:15 ttable turning speeds:100 U/mintable diameter:180 mmhob turning speeds:750 U/minmax. hob diameter:300 cutter length max.:230 mmLiebherr LC300 with loading automation Machine without counter holderUsed to work with oil

max. module:7 weight of the machine ca.:5 tworm grinding diameter:280-350 mmwidth of grinding worm:84-104 mmmin. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mmmax. workpiece weight:60 kgwith Turbo Separator, loading unit, latest-generation balancing and dressing unit and various accessories

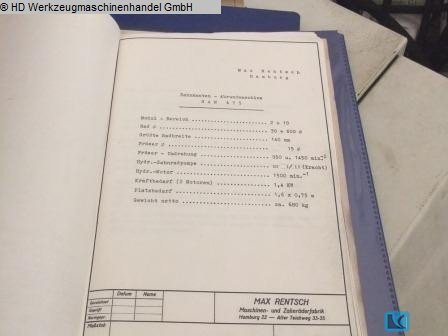

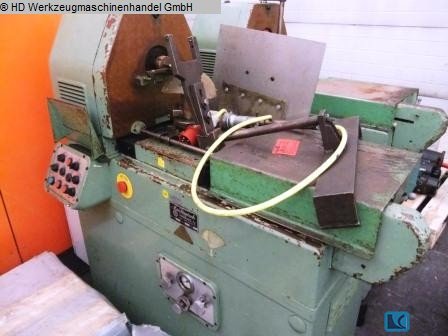

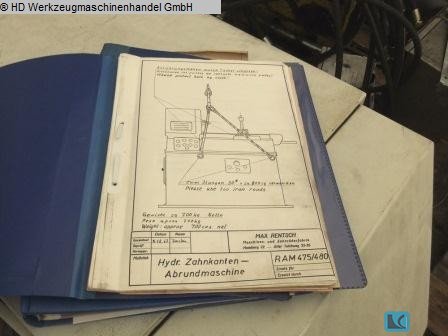

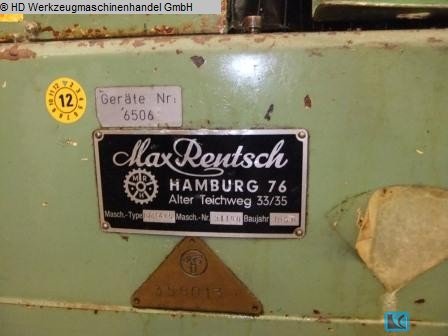

max. wheel diameter:600 mmmax. module:10 min. module:2 total power requirement:1,4 kWweight of the machine ca.:0,68 tdimensions of the machine ca.:1,6x0,75 mdiameter of hob:15 mmgear width:140 mm

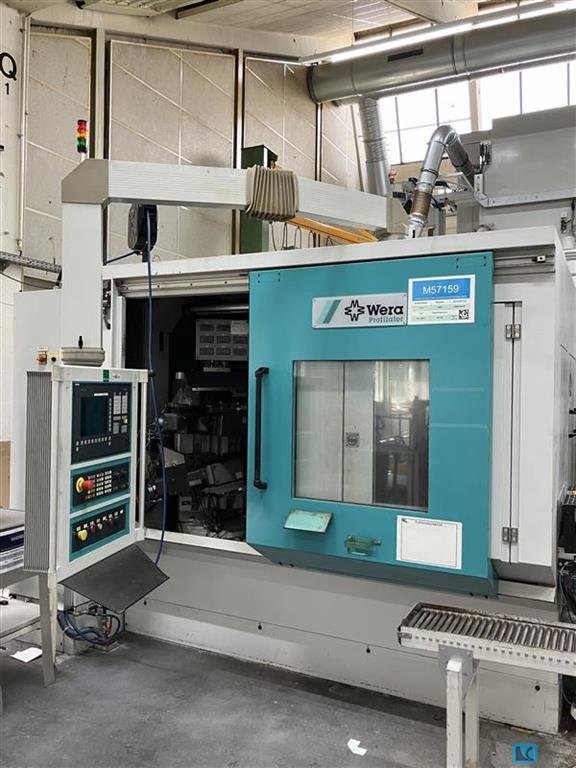

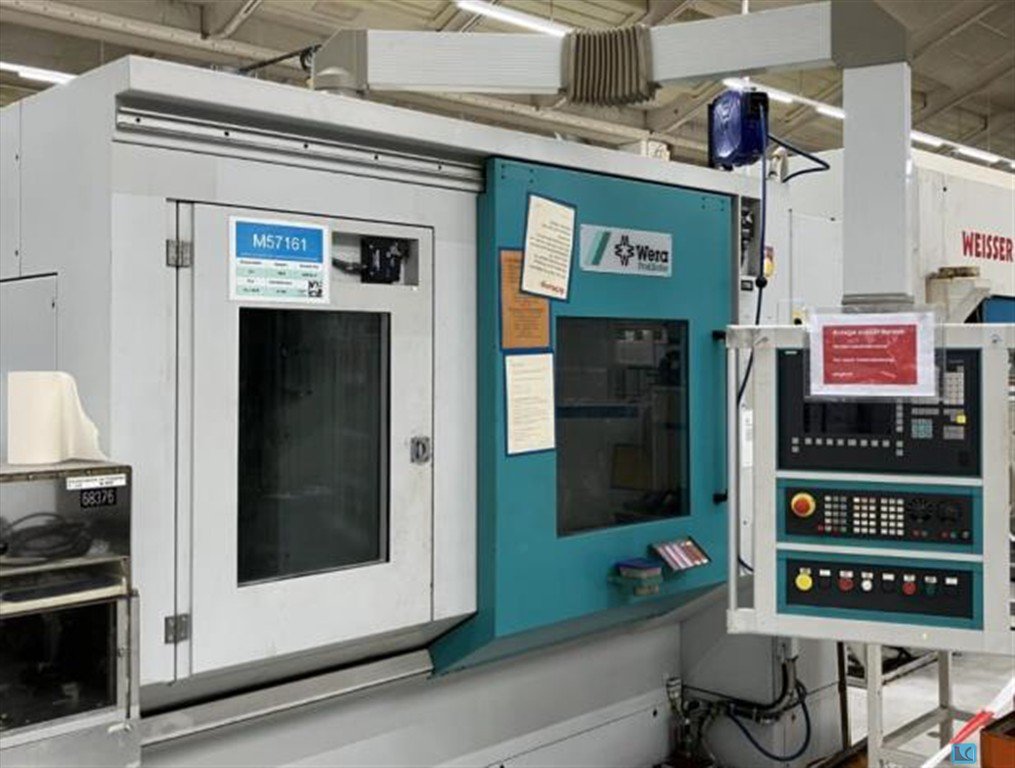

max. wheel diameter:300 mmgear width:100 mmmax. module:5 workpiece turning speeds:0 - 1000 1/minwork piece - max.:1100 mmworkpiece clamping:auto. tension device number of spindle speeds:1000 1/min.spindle bearing diameter:100 mmdiameter of spindle flange:120 mmtailstock travel:80 mmweight of the machine ca.:3500 KGdimensions:1200 x 1450 x 2250 mmtotal power requirement:10 kVAThe Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2026, Josef Weber. All rights reserved.

max. wheel diameter:5 - 260 mmgear width:400 mmmax. module:15 min. module:0,5 gear hobbing diameter - internal:30 mmmax. helix angle:> 85 ° Aussenverz.max. helix angle:> 45° Innenverz.Testing Range vertical:400 mmdist. between centers:5 - 600 mmtable diameter:260 mmmax. table load:100 kgspeeds:30 1/mintotal power requirement:1,6 kVAweight of the machine ca.:900 kgdimensions of the machine ca.:200 x 1300 x 2150 mmCNC Gear Tester in good condition, out of OEM Test Lab.For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.)

max. wheel diameter:300 mmgear width:100 mmmax. module:5 workpiece turning speeds:0 - 1000 1/minwork piece - max.:1100 mmworkpiece clamping:auto. tension device number of spindle speeds:1000 1/min.spindle bearing diameter:100 mmdiameter of spindle flange:120 mmtailstock travel:80 mmweight of the machine ca.:3500 KGdimensions:1200 x 1450 x 2250 mmtotal power requirement:10 kVAThe Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.

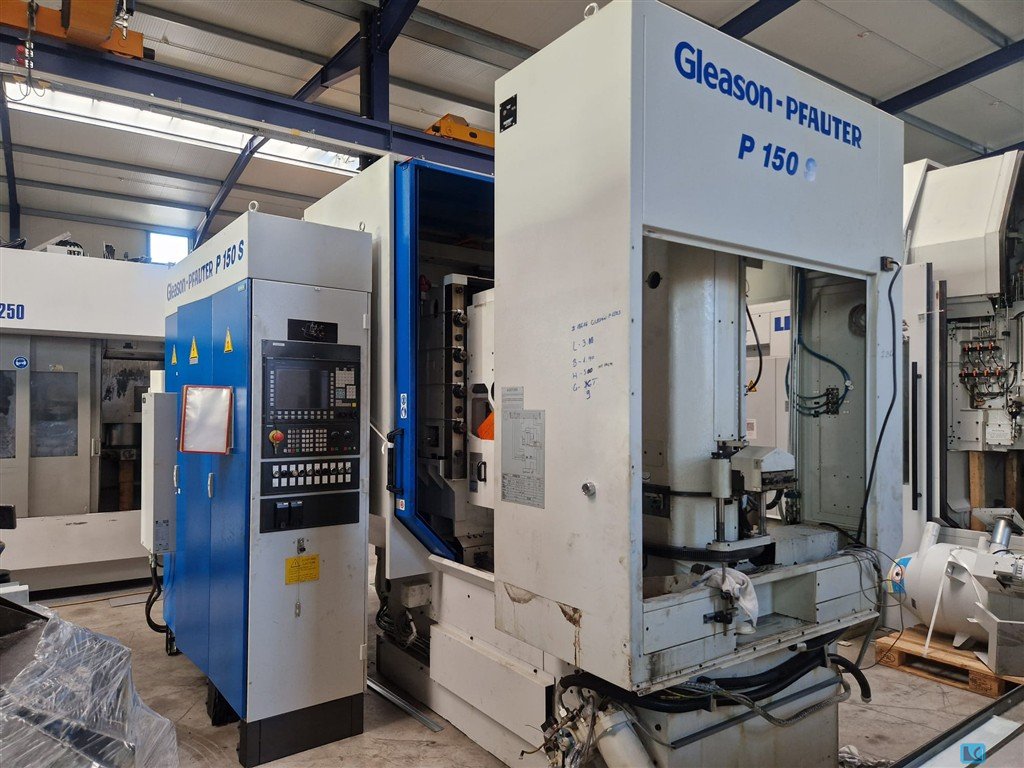

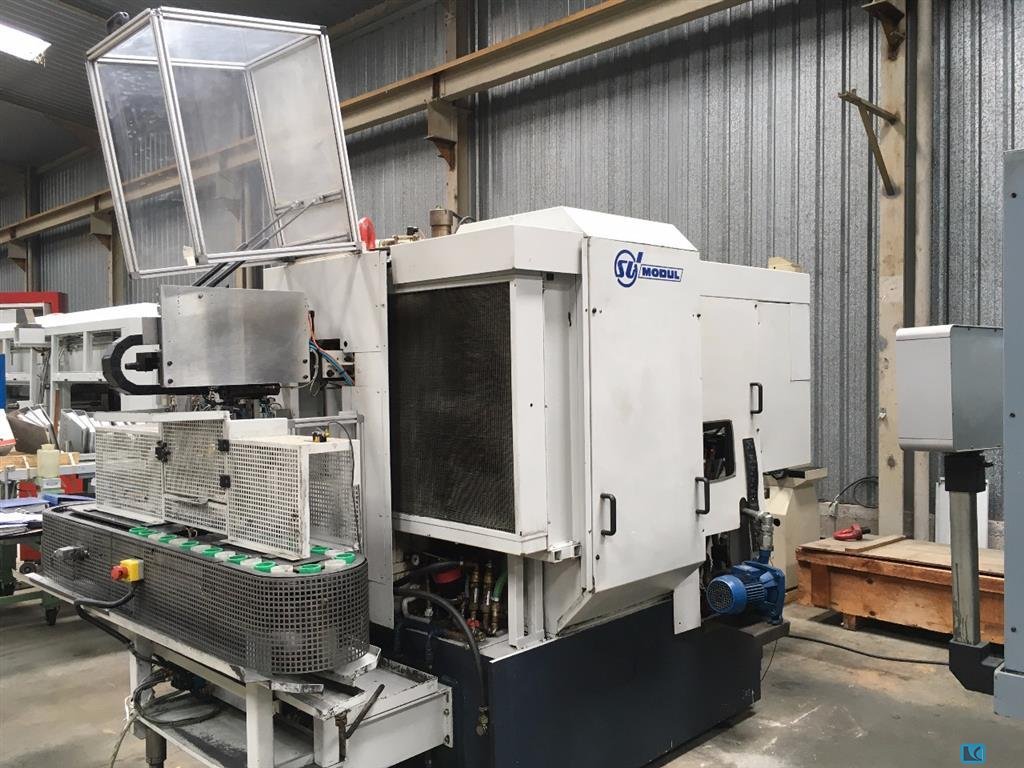

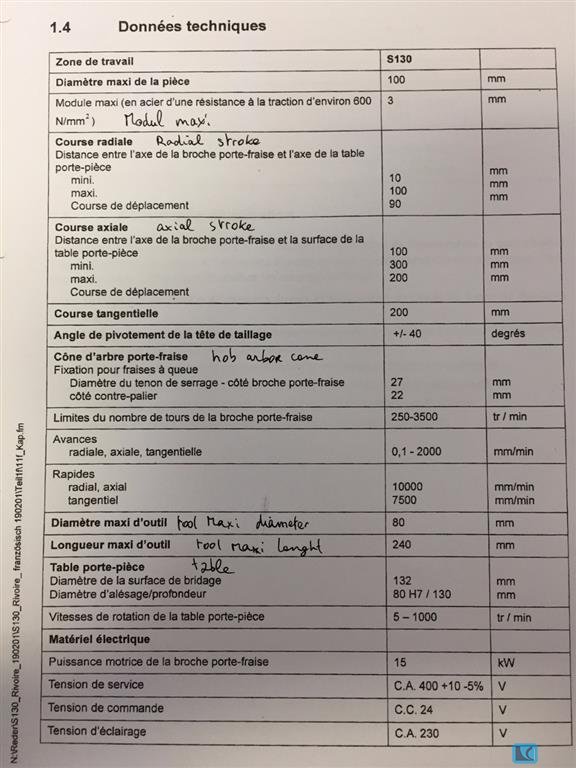

max. wheel diameter:130 mmmax. module:3 total power requirement:15 kWweight of the machine ca.:6 tdimensions of the machine ca.:2,3 x 2,5 x 2,17 mA well-preserved CNC hobbing machine Vertical for shafts and wheelsWith tailstockAlso suitable for hard milling (good for steering pinion)Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mmAccessories :Hydraulical workpiece clampingAutomatic ...

max. wheel diameter:180 mmmax. module:5 min. module:1 weight of the machine ca.:14 tdimensions of the machine ca.:4,5 x 2,84 x 2,8 mmin. number of teeth:7 toolpiece turning speed range:4000-10000 U/mintool length:210 mmWith tail stockNo dressing deviceOnly CBN

max. wheel diameter:180 mmgear width: mmmax. module:4 total power requirement:14 kWweight of the machine ca.:8 tslide travel axial ( Z-axis ):300 mmwork piece - max.:490-640 mm

max. wheel diameter:275 mmgear width:58 mmmax. module:8 min. module:0,5 weight of the machine ca.:10 tmax. number of teeth:200 min. number of teeth:5

pulling force - max.:2,5 tmax. ram stroke:1000 mmmax. workpiece diameter:40 mmBroaching speed:60 m/min.return speed:20 m/min.total power requirement:24 kWweight of the machine ca.:6 tdimensions of the machine ca.:1,7 x 2,4 x 4,77 mclamping plate:320 mmIt is a hydraulic machine.

workpiece diameter:63,5 mmcentre distance:350 mmhoning length max.: mmtotal power requirement: kWweight of the machine ca.:6 tdimensions of the machine ca.:2,70x2,30x2,60 mTechnical data G0504working spaceLength of the clamping surface mm 1550Number of T-slots mm 2Width of the T-slots mm 18Distance between T-slots mm 180Center height (tailstocks) mm 350Swivel range of the fine wheel head (U-axis) degrees + 30 / -30Center distance - tailstock / fine wheel min./max. mm 120/225Input resolution (all NC axes) mm / degrees 0.001Delivery slideMovement range (= Z-axis travel) mm 105Input resolution mm 0.001toolOutside diameter min./max. mm 225/275Hole diameter mm 160Width mm 60workpieceOutside diameter min./max. mm 40-150Module min./max. mm 1.25-4.0Tooth width max. Mm 45weightWeight of the machine approx. Kg 5500Operating fluid requirements Cooling lubricant recommendation, see chap. 8thHydraul ...

max. wheel diameter: 420 mmgear width: 120 mmmax. module: 7 mmmin. module: 0,5 gear hobbing diameter - external: 420 mmgear hobbing diameter - internal: 370 mmtable diameter: 400 mmboring diameter: 125 mmspindle stroke: 120 mmstroke position adjustment: 230 mmstrokes - infinitely variable: 30 / 800 Hub/mindepth feed stepless: 0,016 - 0,063 mm/Hubtotal power requirement: 35 kWweight of the machine ca.: 7,5 tdimensions of the machine ca.: 2,46 x 3,48 x 2,66 mAccessories: - Various replacement wheels and blade holders - DocumentationThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 180 mmtable diameter: 145 mmmax. module: 3-5 mmgear width: 250 mmtable turning speeds: 800 U/minmilling head vertical adjustable: 400 mmMilling axis swiveling range: + / - 45 °max. milling cutter diameter: 90 mmhob turning speeds: 0 - 6000 U/mincutter length max.: 211 mmcontrol: Siemens 840 Dtotal power requirement: 23 kWweight of the machine ca.: ca. 10 tdimensions of the machine ca.: 4,5 x 3,5 x 2,7 mThe LC series is a machine system for the machining of spur and helical gears and cylindrical gear shafts and helical gears and cylindrical gear shafts, which is characterised by its special performance and versatility.Compared to other gear manufacturing processes, gear hobbing is characterised by its characterised by its high consistency of machining results over the entire tool life.Technical data of the machine:Basic specifications:--> Machining type: dry--> Volta ...

max. wheel diameter: 180 mmgear width: ca. 220 mmmax. module: 3 / 5 mmControl: Siemens 840D sl max. radial velocity: 5000 mm/minmax. workpiece diameter: 180 mmtable rotation speed: 800 U/mintable diameter: 145 mmaxial travel: 250 mm mmback rest:: axial travel: 300 mmclamping force max.: 13 kNmilling head:: swivelable +/-: 45 °drive capacity: 23 kWturning speeds: 6000 U/mindiameter of tools max.: 90 mmtool clamping length max.: 211 mmmodule hobbing max.: 3 module profile milling max.: 5 tangential speed max.: 7500 mm/minweight of the machine ca.: 9,5 tdimensions of the machine ca.: 4,5 x 3,5 x 2,7 mEquipment / Accessories:- The machine is equipped for dry milling.- workpiece magazine- parallel gripper: - workpiece weight form-fit max. 15 kg - workpiece length max. 400 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Maximum workpiece outer diameter: 3420 mmMinimum workpiece inner diameter: 630 mmmax. module: 30 mmcontrol: Siemens Sinumerik 840 D Workpiece tooth width - max.: 600 mmtip circle diameter: 440 mmMilling arbour diameter: 80 mmx-travel: 1110 mmy-travel: 1300 mmspindle turning speed - stepless: 18 - 180 U/minrotary table speeds infinitely variable: 0 - 6 U/minRing stength: 500 mmtotal connected load: 100 kVAweight of the machine ca.: 38 tdimensions of the machine ca.: 8,41 x 9,05 x 5,19 mFeed rate: - X-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in 1/min - Tool 18 to 180 - Workpiece table 0 to 6Equipment/accessories: - IFK2 internal milling head - Milling arbor with spacer discs - Chip conveyor - Oil mist extraction - Dry machining only - Technical documentation The data for this ad was created with ModulMWS - the software so ...

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mmtooth width max.: 58 mmspindle speeds (infinitely variable): 6000 U/minwork piece spindle speed: 1200 U/mindiameter of tools max.: 230 mmdiameter of tools min: 69,85 mmx-axis: 325 mmy-axis: 350 mmz-axis: 470 mmb-axis: + 90,1 / - 1 °work piece table - Ø: 212,71 mmControl: SIN 840 D SIEMENStotal power requirement: 75 kWweight of the machine ca.: 10.000 Kgdimensions of the machine ca.: 6,10 x 4,40 x 3,30 mInternal probe Renishaw LP2 (axis X2,Y2)Hoffmann coolant filter system HSF 100SE/K (built in 2008)Tank capacity 2500LVT oil mist filter systemThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
