Venjakob VEN SPRAY Comfort

-with belt cleaning at the machine outlet under a folding table with belt conveyor. In 2021, the PLC control, the touch screen control, and the frequency converter for the spraying
-gun drive were replaced.
- Manufacturer: Venjakob
- Type: HGS
-Duo/C
- Retrofit 2026 (year of manufacture 2002)
- Working width 1,300 mm
- Operating side right
- Price for refurbished machine
- Current condition, in the refurbishment phase
- Gun drive in duo design
- Dry extraction
- Exhaust air capacity 10,000 m³/h
- Extraction nozzle diameter 500 mm
- Belt conveyor system
- Feed speed approx. 5 and 14 m/min
- With belt cleaning system
- With paint recovery via V
-belt system
- Gun control, touch screen
- Installed color circles 1 pc.
- 4 Airelss sprayers, Krautzberger KAA1300
- 1 HD airless pump
- Supply air filter ceiling
- Suitable for water
-based paints
- Suitable for solvent
-based paints
- Control cabinet integrated into the machine.
- Total connection ~ 19kW
- Length: 6,485mm
- Width: 3,690 mm
- Height: 2,497 mm
- Volts, Hz 400 / 50
- Color light gray 7035 + black
- Location, in stock
- Voltage fluctuations max. +/

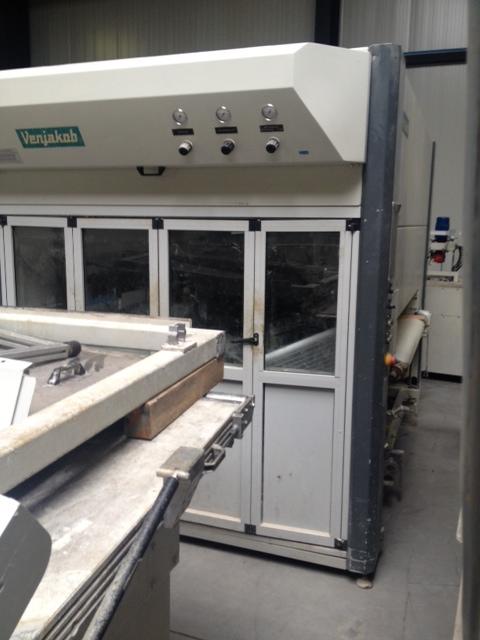

- 5% The pictures are examples of an unrefurbished spray machine of the same type. ___________________________________ Optionally, we can also provide you with a quotation for the assembly and start
-up of the system, as well as training for your employees. We also offer regular maintenance and servicing of the machine on request. For further information, get in touch with us!
