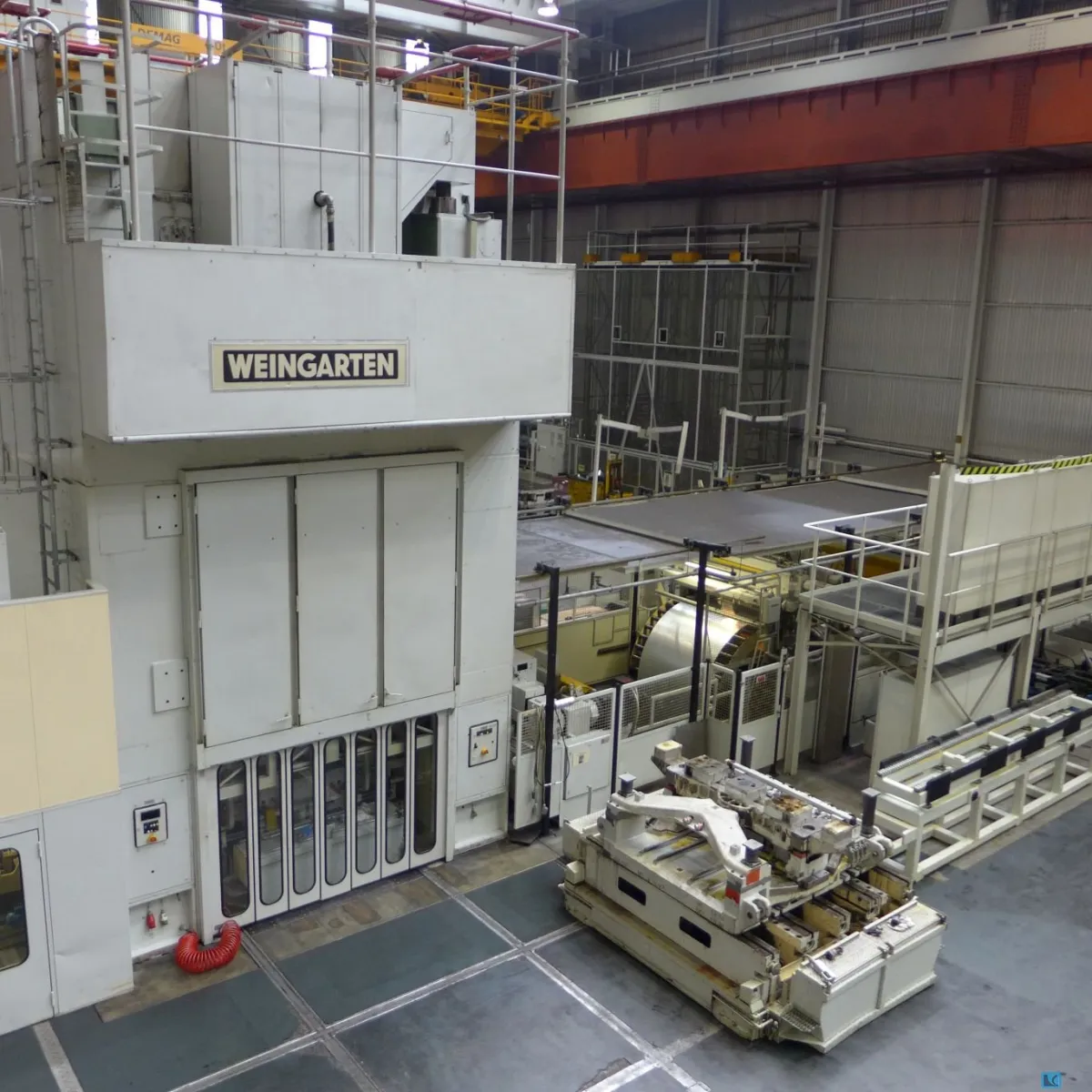

MÜLLER WEINGARTEN VK800.28.35 Double Column Drawing Press - Mechanical
usatoVenditore verificato
Richiedi il prezzo
Direttamente al venditore
1 / 5
Dati tecnici
· ID 170391850Macchine usate
- Condizioni
- usato
- Anno di costruzione
- 1983
- Ubicazione
- Freudenberg
Identifikation
ProduttoreMÜLLER WEINGARTEN
ModelloVK800.28.35
Numero articolo1048-7-47078
Technik
Quantità1
Descrizione
pressure:800 t
distance between columns:2900 mm
stroke:350 mm
Controls:SIEMENS
PRESS DESIGN:.
- frame design : H-frame :.
- Drive type : mechnical :.
- openings in uprights : yes :.
- number of cushions:0
- opening in table : yes :.
- moving bolster : yes :.
PRESS FORCES:.
- total force (nominal):800 to
PRESS TABLE:.
- clamping surface (left-right):2800 mm
- clamping surface (front-back):2800 mm
- rectangular breakthrough (width):2000 mm
- rectangular breakthrough (front-back):1800 mm
- height above floor level:850 mm
RAM:.
- clamping surface (left-right):2800 mm
- clamping surface (front-back):2800 mm
- stroke:350 mm
- number of strokes max:55 /min
RAM (MECHAN. PRESS):.
- ram adjustment:350 mm
TOOL ASSEMBLY DIMENSIONS:.
- shut height (stroke down, adjustment up):1100 mm
- distance between columns (H-frame):2900 mm
- Free passage between side columns (width):2560 mm
- Free passage between side columns (height):1500 mm
ELECTRICAL SPECIFICATIONS:.
- total power consumption:188 kW
- mains voltage:400 V
- mains frequency:50 Hz
DIMENSIONS / WEIGHTS:.
- height above floor level:9300 mm
- height under floor level:3500 mm
- total weight approx.:230000 kg
Technical description :
Mechanical crank press / cutting press with max. 55 strokes per minute.
2 sliding tables - extendable in a T-shape.
distance between columns:2900 mm
stroke:350 mm
Controls:SIEMENS
PRESS DESIGN:.
- frame design : H-frame :.
- Drive type : mechnical :.
- openings in uprights : yes :.
- number of cushions:0
- opening in table : yes :.
- moving bolster : yes :.
PRESS FORCES:.
- total force (nominal):800 to
PRESS TABLE:.
- clamping surface (left-right):2800 mm
- clamping surface (front-back):2800 mm
- rectangular breakthrough (width):2000 mm
- rectangular breakthrough (front-back):1800 mm
- height above floor level:850 mm
RAM:.
- clamping surface (left-right):2800 mm
- clamping surface (front-back):2800 mm
- stroke:350 mm
- number of strokes max:55 /min
RAM (MECHAN. PRESS):.
- ram adjustment:350 mm
TOOL ASSEMBLY DIMENSIONS:.
- shut height (stroke down, adjustment up):1100 mm
- distance between columns (H-frame):2900 mm
- Free passage between side columns (width):2560 mm
- Free passage between side columns (height):1500 mm
ELECTRICAL SPECIFICATIONS:.
- total power consumption:188 kW
- mains voltage:400 V
- mains frequency:50 Hz
DIMENSIONS / WEIGHTS:.
- height above floor level:9300 mm
- height under floor level:3500 mm
- total weight approx.:230000 kg
Technical description :
Mechanical crank press / cutting press with max. 55 strokes per minute.
2 sliding tables - extendable in a T-shape.
