presse usati in vendita (1,729)

Massimo. diametro dello spazio vuoto iniziale: 30 mm Lunghezza vuota: -Min.: 120 mm -Max.: 300 mm Massimo. diametro della flangia sconvolta: 60 mm Sconvolgente slittano forza nominale: 2500 kN Massimo. forza sul scivolo di serraggio con date chiuse: 2500 kN infarto: -Dado mobile: 100 mm -Sconvolgimento (pieno): 220 mm -Chiusura del dado: 140 mm Tratti di scorrimento al minuto: 45 Dimensioni complessive della macchina: -Lunghezza: 6050 mm -Larghezza: 4600 mm -Altezza: 2260 mm Peso della macchina: 24680 kg

Capacità, tonnellata: 800 Corsa, mm: 320 Ictus/min: 20 Altezza di chiusura, mm: 900 Corsa di regolazione da letto a ram, mm: 320 Dimensioni del letto, mm: 2500x1600 Potenza del motore a trazione principale, kW: 75 Dimensioni complessive, mm: 4220x3500x8356 Peso, tonnellata: 96,6

(tavolo mobile laterale anteriore) Forza nominale: 1000 tonnellate Tratto di scorrimento: 400 mm Tratti di scorrimento continui per 1 min: 20 Singolo tratti diapositiva per 1 min: 16 Altezza di chiusura: 1060 mm Regolazione del faro: 320 mm Dimensioni del tavolo: 3150x1800 mm Scivolo dim., frontale: 1700 mm Finestra H 1500 x W 1900 mm Cuscino idro pneumatico in tavola forza di bloccaggio a P - 0,42 MPa (P 4,2 kg / cm2), kN 2000 forza di espulsione P - 0,45 MPa (P 4,5 kg / cm2), kN 200 Potenza del motore elettrico a trazione principale: 132 kW DIMENSIONI: 5150x4700x11400 Pavimento H7830 mm PESO: 193 tonnellate

Descrizione dell'attrezzatura Pressa per estrusione indiretta usata • Marca / Modello: SMS Hasenclever 28 / 31.5 MN "McKechinstrang" • Tipologia: Impianto di estrusione indiretta orizzontale per billette non ferrose • Azionamento: Unità principale meccanica con ausiliari idraulici • Paese di origine: Germania • Stato attuale: Smontato e disponibile per la spedizione • Numero di serie / Anno di fabbricazione: [Da confermare] 2. Specifiche tecniche chiave Valore parametro Forza del pistone principale 25,07 MN Forza totale della pressa con giunto 31,23 MN Corsa massima 3.070 mm Corsa di lavoro 2.825 mm Velocità del pistone a 28 MN 0–64 mm/sec Velocità del pistone a 31,5 MN 0–57 mm/sec Gamma di diametri billette 230–355 mm Lunghezza billetta (freddo) 320–1.320 mm Resistenza del sistema di riscaldamento del ricevitore; max 63 kW / 375 C Forza di tag ...

Pressa meccanica per forgiatura a lato dritto Ajax da 1.000 tonnellate S/N 4410 10" Corsa 33" Altezza di chiusura Letto da 36" x 36" 80 colpi al minuto Parzialmente ricostruito Pressa meccanica per forgiatura a lato dritto Ajax da 1.000 tonnellate S/N 4621 10" Corsa 32" Altezza di chiusura Letto da 36" x 32" 80 colpi al minuto I cuscini sono inclusi. Entrambe le presse sono funzionanti e sotto tensione.

Pressa per forgiatura a stampo aperto da 6500 tonnellate HJ / Seonam (Corea) Design: Società dell'Europa orientale Installazione: 2006/2008 Tipo di pressa: Impianto oleodinamico a spinta a quattro colonne Forza nominale (pressione statica di esercizio di 320 bar): 5.000 tonnellate Forza di risalita (pressione statica di esercizio di 420 bar): 6500 Tonnellate Luce diurna: 5.200 mm Corsa della testa a croce mobile: 2.700 mm Diametro pistone principale (cilindro centrale): 1 set - ¢950 mm Diametro pistone laterale (cilindro laterale): 2 set - ¢750 mm Diametro pistone di ritorno: 2 set - ¢300 mm Larghezza della tavola mobile: 2.600×Lunghezza 6.600 mm Corsa tavola mobile (centro su entrambi i lati 2.750 mm): 5.500 mm Velocità di avvicinamento: 300 mm/sec Velocità di forgiatura del cilindro principale (2.200 tonnellate/ 320 bar): 163 mm/sec Velocità di forg ...

VORONEZH K8544 Pressa per stampaggio a caldo ANNO : 1980 / 2008 REVISIONE E INSTALLAZIONE FORZA: 2500ton CORSA RAM : 350 mm DIMENSIONE RAM : 1120X1070 mm DIMENSIONI DEL TAVOLO : 1400X1200 mm NUMERO DI COLPI IN MODALITÀ CONTINUA : 60 NUMERO DI COLPI IN MODALITÀ MANUALE : 26 ALTEZZA DI CHIUSURA : 890 mm CORSA FORO SUPERIORE: 60 mm TAPPO DEL FORO INFERIORE : 70 mm MOTORE PRINCIPALE: 132KW (CAMBIATO IN HYUDAI HEAVY Y2012) INGOMBRO PRESSA : 5380X4680X6400 mm BOLSTER IDRAULICO NUOVO NEL 2007 CONDIZIONE : OTTIME CONDIZIONI DI LAVORO Pressa di rifilatura disponibile

Linea pressa per stampaggio a caldo Sumitomo da 2000 tonnellate Anno 2006 Corsa 350 mm (13.78inch) Colpi al minuto 75 Altezza dell'otturatore 850 mm (33,47 pollici) SlideAdj. 7 mm (.27 pollici) Dimensione ram 1200 mm LR X 1300 mm FB Dimensioni letto 1320 mm LR X 1300 mm FB Sistema di trasferimento a 4 stadi Slide knockout Bottom knockout Sistema di scarto Doppio commutatore Scarpe extra per stampi Disponibile anche riscaldatore billetta e sega ricavata dal pieno Questa linea è stata utilizzata da HONDA per realizzare ingranaggi di trasmissione, prende una billetta, la taglia a misura, la riscalda a 1300 C quindi la pressa la colpisce 4 volte. Può determinare le parti buone da quelle cattive, le parti cattive vengono inviate a un serbatoio di tempra, le parti buone vengono inviate in un trasportatore di raffreddamento che è possibile raccogliere le parti a mano alla fin ...

(2) Pressa per forgiatura orizzontale Asahi THP500-6 (macchina di intestazione) Anno: 2008 Prima corsa: 24 mm Seconda corsa: 50 mm Potenza kickout: 150 kN Altezza aperta: 625 mm Altezza chiusa: 425 mm Stampo (LxL): 500x490 mm Punzone (LxL): 250x350 mm Corsa ram: 200 mm Forza di forgiatura: 5000 kN Tempo di ciclismo: 6,5 sec Velocità manovella: 60 RPM Peso macchina: 28 t

: neu : ca. 12 Wochen ab Auftrags : Türkei : 7000 €: 135.1 €: 80 to: fix : 250 mm: 1040 mm: 200x120 mm: 5 mm/s: 10 mm/s: 1810 mm: 750 mm: 2100 mm: 835 kgsteel welded framestop at any positionpressure manometersafety valve against overloading2 V-blockstable height adjustabletable up-down movement attachmentcontrol by operating leveraccording to CE regulations user manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 12 Wochen ab Auftrags : Türkei : 7400 €: 142.82 €: 100 to: fix : 300 mm: 1070 mm: 220x160 mm: 5 mm/s: 10 mm/s: 2050 mm: 1000 mm: 2200 mm: 1500 kgsteel welded framestop at any positionpressure manometersafety valve against overloading2 V-blockstable height adjustabletable up-down movement attachmentcontrol by operating leveraccording to CE regulations user manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

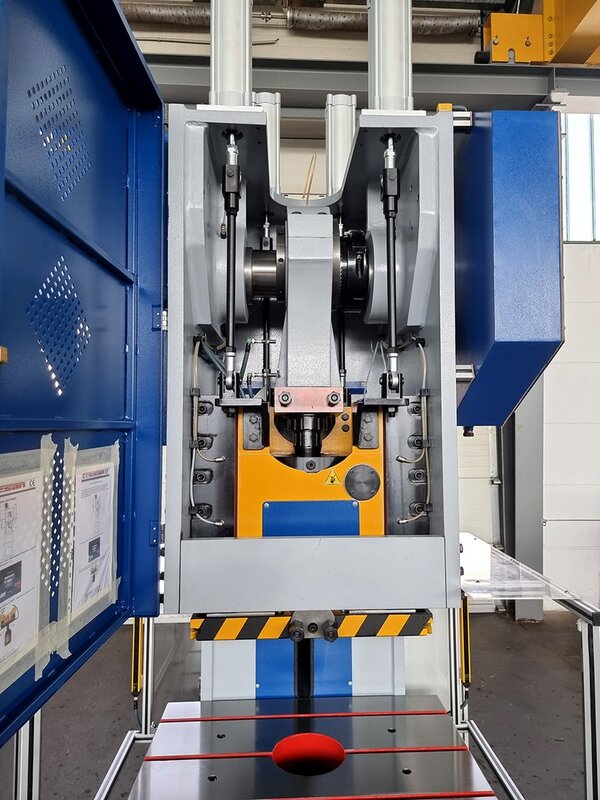

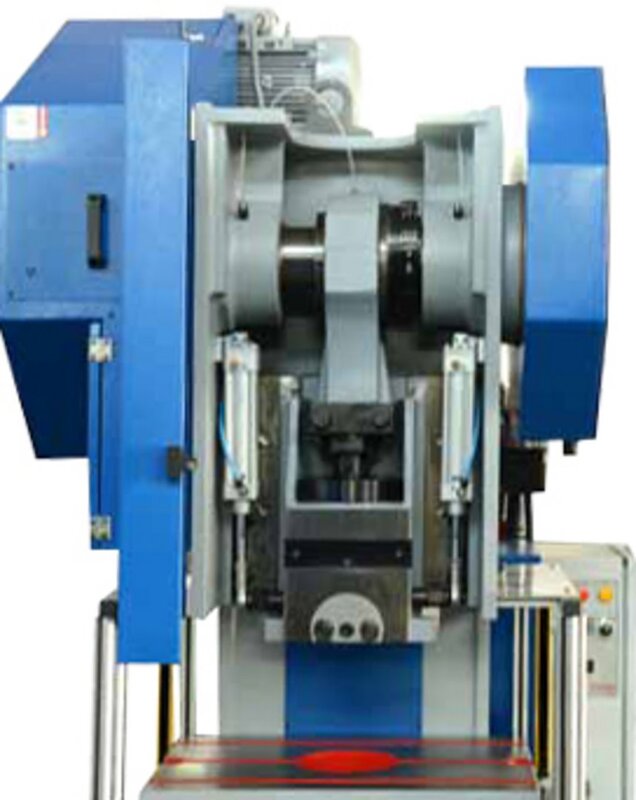

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 70300 €: 1328.67 €: 100 to: 4.5 mm: 700 mm: 1000 mm: 210 mm: 1 - 132 mm: 58 1/min: 6 : 90 mm: 60 mm: 300 mm: 445 mm: 7.5 kW: 1650 mm: 1545 mm: 3011 mm: 7000 kgWelded steel construction body frameCrankshaft made of AISI 4140 (42CrMo4) alloy steel, CNC grinded for max. precisionSnBz-12 quality bronze to bearings, grinded for min surface resistanceRam supported from 6 sidesPneumatic counter-balancing of the ram7", touchscreenGears in oil bathPneumatic clutch-brake combinationPLC control for safetyPhotocell light barriersMotorized slide adjustableMechanical overload fuseTwo hand and foot pedal controlAdjustable stroke (inverter)automatic centrallubricationMachine and equipment in conformity with CE-regulationsOPTIONS: vibration pads € 192,00 bolster plate € 2.580,00The data for this ad was created with ModulMWS - the software solution ...

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 83200 €: 1572.48 €: 130 to: 4.5 mm: 650 mm: 950 mm: 220 mm: 1 - 132 mm: 50 1/min: 6 : 95 mm: 70 mm: 325 mm: 500 mm: 11 kW: 1800 mm: 1725 mm: 3020 mm: 8000 kgWelded steel frame construction6-fold ram guidePneumatic clutch-brake combinationProtective enclosure with light barriers and side doorsMechanical overload protectionTwo-hand and foot pedal operationManual stroke adjustmentMotorized ram adjustmentVariable stroke rate via frequency converterOperating modes: Adjustment mode Two-hand release Foot release 2-stroke operation via light barriers Continuous operationTouchscreen for Stroke counter with preselection for continuous operation Stroke rate adjustment Lubrication intervals and duration Alarm messages Motor direction of rotation Monitoring of inputs and outputs2 free cams for connecting peripheralsAutomatic central lubrica ...

: neu : ca. 4 Monate ab Auftragse : Italien : 123000 €: 2324.7 €: 170 to: 500 mm: 1200x700 mm: 600 mm: 110 mm/s: 7 mm/s: 70 mm/s: 19 kW: 2700 mm: 1600 mm: 2650 mm4-pillar guidetable and ram with T-slots2 hand operationstroke adjustmentpressure adjustmentThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 12 Wochen ab Auftrags : Türkei : 13200 €: 253.44 €: 100 to: horizontal verschiebbar : 300 mm: 1570 mm: 220x160 mm: 5 mm/s: 10 mm/s: 2560 mm: 1000 mm: 2480 mm: 1755 kghorizontal movable cylinder by handwheelsteel welded framestop at any positionpressure manometersafety valve against overloading2 V-blockstable height adjustabletable up-down movement attachmentcontrol by operating leveraccording to CE regulations user manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 10 Wochen ab Auftrags : Türkei : 100920 €: 1907.39 €: 220 to: 4050 mm: Y1 / Y2 / X Achse : 265 mm: 3600 mm: 450 mm: 530 mm: hydraulisch : 160 mm/s: 10 mm/s: 140 mm/s: 500 mm/s: 350 mm/s: 250 mm: 900 mm: 104 mm: 250 l: 22 kW: 5250 mm: 1770 mm: 3000 mm: 14750 kgStandard accessories:3 axes (Y1, Y2,X)CNC control DT-15- 2D grafic display 15",- intuitive touch-screen control (simple drawing of the bending outline with your finger)- user friendly programming in dialogue form- automatic calculation of the bending sequence- automatic calculation of the blank sheet size- graphic product and tool memory- correction possibility- USB interfaces for backup and programm transportation- PC software, generating programms on the PC and transfer to the machine by USBservo motorized back gauge on linear guides and ball screwsback gauge finger blocks on double linear guidesCNC crowning t ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 98300 €: 1857.87 €: 135 to: 3050 mm: Y1 / Y2 / X und R Achse : 265 mm: 2600 mm: 410 mm: 530 mm: hydraulisch : 200 mm/s: 10 mm/s: 200 mm/s: 650 mm: 500 mm/s: 250 mm: 900 mm: 104 mm: 4200 mm: 1680 mm: 2750 mm: 9500 kg1 SERVO MOTOR AND PUMP PER CYLINDER4 axes (Y1, Y2,X andR)CNC control SKY 22- intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD- with 2D and 3D working screen- direct programming of the bending angle- user friendly programming in dialogue form optionally in 2D or 3D mode- 2D and 3D simulation of the bending sequence- automatic tool selection in 3D mode- automatic calculation of the blank sheet size- bending order calculation- graphic product and tool memory- correction possibility- USB and Ethernet interfaces for import, backup and programm transportation- OS: Windows- IGES,  ...

: neu : ca. 10 Wochen ab Auftrags : Türkei : 104800 €: 1980.72 €: 150 to: 500 mm: 950 x 650 mm: 1200 x 750 mm: 750 mm: 100 mm/s: 5,5 mm/s: 165 mm/s: 11 kW: 2200 mm: 2200 mm: 3650 mm: 9500 kg: 254 bar: 32 to: 200 mm: 120 mm: 160 bar: 40 mm/sec.: 720x540 mmlight curtaincushionmanual and automatic workingmanual stroke adjustment by camshaft switchmaintenance free self lubricating 4-fold ram guidingpolster plate with T-slotsaccording to ",CE", rulesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 4 Monate ab Auftragse : Italien : 132500 €: 2504.25 €: 200 to: 500 mm: 1250x1000 mm: 600 mm: 25 mm/s: 3,5 mm/s: 7.5 kW: 1550 mm: 1300 mm: 2700 mm4-pillar guideram guide roundtable and ram with T-slots2 hand operationSiemens PLCmanometerusers manualOPTIONS: Light barrier € on RequestSiemens touchscreen-control, 50 programsstoreable, for programming: • Upstroke and downstroke quota• Break time in the bottom• time of Decompression• setting pressure of work• Pieces counter• prestop in upstroke and downstroke• setting for movement in manual and in automatic• management of alarms and anomalies € on Request Working hour counter € on Request Stroke counter € on Request Decompression valve € on Request Oil cooler with decompreission valve € on Request Pressur switch € on RequestThe data for this ad was created with ModulMWS - the software solution of  ...

: neu : ca. 4 Monate ab Auftragse : Türkei : 46600 €: 890.06 €: 30 to: 200 mm: 500x380 mm: 700x450 mm: 400 mm: 54 mm/s: 18 mm/s: 90 mm/s: 7.5 kW: 1680 mm: 850 mm: 250 mm: 2950 kg2-pillar guidetable and ram with T-slots2 hand operationstroke adjustmentpressure adjustmentfront light barriersaccording to CE rulesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 4 Monate ab Auftragse : Italien : 138000 €: 2608.2 €: 170 to: 500 mm: 870x500 mm: 1000x600 mm: 600 mm: 300 mm: 110 mm/s: 42 mm/s: 7 mm/s: 70 mm/s: 19 kW: 1500 mm: 1950 mm: 2650 mm4 guides for the slideT-slots in the tableRexroth hydraulic unitMonitored electrovalvesAir/oil heat exchangerPressure switchDouble pushbuttons controlStroke adjustment by limit switch micronsSiemens CPULateral fixed protrection gratesCE certification following ",IV enclosure",OPTIONS(prices on request):Blank holderPrismatic guidesFrontal light curtainCNC control Siemens with touchscreenHydraulic pump with variable flowProportional valvesLateral sliding guides with security micronsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 202100 €: 3869.08 €: 320 to: 6050 mm: Y1 / Y2 / X und R Achse : 365 mm: 5100 mm: 450 mm: 630 mm: hydraulisch : 160 mm/s: 10 mm/s: 160 mm/s: 650 mm: 500 mm/s: 250 mm: 1100 mm: 154 mm: 160 l: 7500 mm: 1910 mm: 3350 mm: 29000 kg1 SERVO MOTOR AND PUMP PER CYLINDER4 axes (Y1, Y2,X andR)CNC control SKY 22- intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD- with 2D and 3D working screen- direct programming of the bending angle- user friendly programming in dialogue form optionally in 2D or 3D mode- 2D and 3D simulation of the bending sequence- automatic tool selection in 3D mode- automatic calculation of the blank sheet size- bending order calculation- graphic product and tool memory- correction possibility- USB and Ethernet interfaces for import, backup and programm transportation- OS: Windo ...

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 252800 €: 600 to: 4050 mm: Y1 / Y2 / X und R Achse : 365 mm: 3100 mm: 410 mm: 700 mm: hydraulisch : 160 mm/s: 10 mm/s: 160 mm/s: 650 mm: 500 mm/s: 250 mm: 900 mm: 154 mm: 280 l: 5750 mm: 2500 mm: 4000 mm: 40500 kg1 SERVO MOTOR AND PUMP PER CYLINDER4 axes (Y1, Y2,X andR)CNC control SKY 22- intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD- with 2D and 3D working screen- direct programming of the bending angle- user friendly programming in dialogue form optionally in 2D or 3D mode- 2D and 3D simulation of the bending sequence- automatic tool selection in 3D mode- automatic calculation of the blank sheet size- bending order calculation- graphic product and tool memory- correction possibility- USB and Ethernet interfaces for import, backup and programm transportation- OS: Windows- IGES, STEP ...

: neu : ca. 4 Monate ab Auftragse : Italien : 31200 €: 595.92 €: 100 to: horizontal verschiebbar : 500 mm: 700 mm: 1550 mm: 25 mm/s: 2 mm/s: 2400 mm: 1200 mm: 2450 mm: 1960 kgHORIZONTAL MOVABLE CYLINDER 1.050 MM2 speedscontrol by handwheel and push button (2-hand)adjustable max. pressuremanometeraccording to CE regulations user manual in GERMAN and ENGLISH(sample photo)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 10 Wochen ab Auftrags : Türkei : 86300 €: 1631.07 €: 150 to: 300 mm: 950x650 mm: 1200x750 mm: 550 mm: 100 mm/s: 5,5 mm/s: 165 mm/s: 11 kW: 2200 mm: 2200 mm: 3250 mm: 8200 kg4-pillar guidetable and ram with T-slotsmanual stroke adjustment via cam switchmanual and automatic operationfront light barriersaccording to CE rulesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 4 Monate ab Auftragse : Italien : 258000 €: 400 to: 500 mm: 5.000 x 3.050 mm: 700 mm: 20 mm/s: 2 mm/s: 4500 mm: 5000 mm: 2600 mm: 24000 kg: horizontal verschiebbar : 3050 mm: 2.200 mm: 3.600 mmHorizontal verschiebbarer Zylinder2.200 mmHydraulisch beweglicher Ständer: 3.600 mmBedienung über Handhebel sowie BedienpanelTisch mit integriertem Zylinder zum anheben des WerkstücksAusrüstung gemäß CE Vorschriften Betriebsanleitung in DEUTSCH und ENGLISCH(Symbolfoto)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 92600 €: 1750.14 €: 160 to: 6 mm: 750 mm: 1100 mm: 230 mm: 1 - 172 mm: 45 1/min: 6 : 100 mm: 80 mm: 375 mm: 540 mm: 11 kW: 1890 mm: 1950 mm: 3650 mm: 15500 kgWelded steel frame construction6-fold ram guidePneumatic clutch-brake combinationProtective enclosure with light barriers and side doorsMechanical overload protectionTwo-hand and foot pedal operationManual stroke adjustmentMotorized ram adjustmentVariable stroke rate via frequency converterOperating modes: Adjustment mode Two-hand release Foot release 2-stroke operation via light barriers Continuous operationTouchscreen for Stroke counter with preselection for continuous operation Stroke rate adjustment Lubrication intervals and duration Alarm messages Motor direction of rotation Monitoring of inputs and outputs2 free cams for connecting peripheralsAutomatic central lubric ...

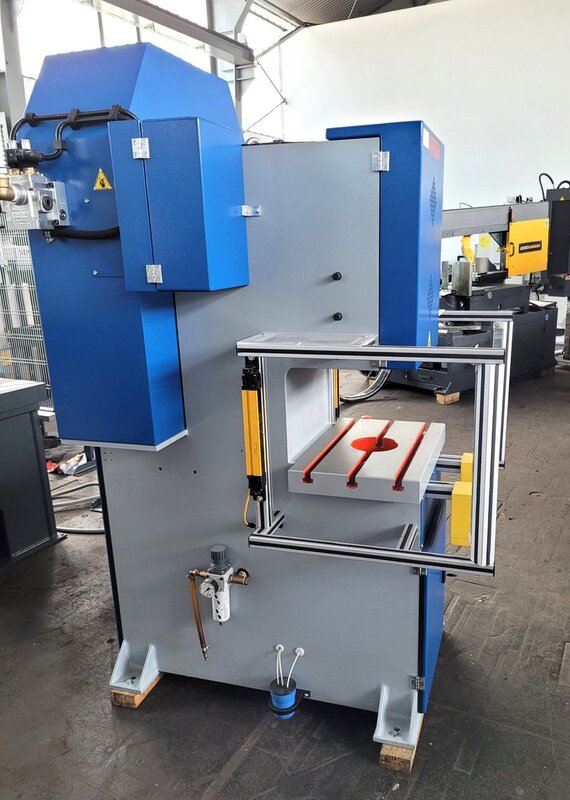

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 28800 €: 550.08 €: 20 to: 1.7 mm: 360 mm: 550 mm: 140 mm: 1 - 50 mm: 160 1/min: 4 : 40 mm: 35 mm: 200 mm: 240 mm: 2.2 kW: 1360 mm: 1100 mm: 1860 mm: 1250 kgWelded steel frame construction4-fold ram guidePneumatic clutch-brake combinationProtective enclosure with light barriers and side doorsMechanical overload protectionTwo-hand and foot pedal operationManual stroke adjustmentManual ram adjustmentVariable stroke rate via frequency converterOperating modes: Adjustment mode Two-hand release Foot release 2-stroke operation via light barriers Continuous operationTouchscreen for Stroke counter with preselection for continuous operation Stroke rate adjustment Lubrication intervals and duration Alarm messages Motor direction of rotation Monitoring of inputs and outputs2 free cams for connecting peripheralsAutomatic central lubrication ...

: neu : ca. 6-8 Wochen ab Auftrag : Italien : 600 to: 500 mm: 6.000 x 2.550 mm: 700 mm: 18 mm/s: 3 mm/s: 5000 mm: 6000 mm: 3000 mm: 43000 kg: horizontal verschiebbar : 2550 mm: 2200 mm: 4600 mmhorizontal movable cylinderhydraulicaly movable standcontrol by levers as well as control panelaccording to CE regulations user manual in GERMAN and ENGLISHOPTIONS:Work table, welded to the base frame, with holes on the surfaceControl panel on the swivel arm (push buttons for press movement, solenoid valves, Siemens CPU)Radio control panel (push buttons for press movement, solenoid valves, Siemens CPU)Siemens control with touchscreenLifting cylinders in the table (6, 8 or 10 pcs.)No-rotation shaft for the piston2 speeds for stand movement and cylinderOil cooler and decompression valveThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

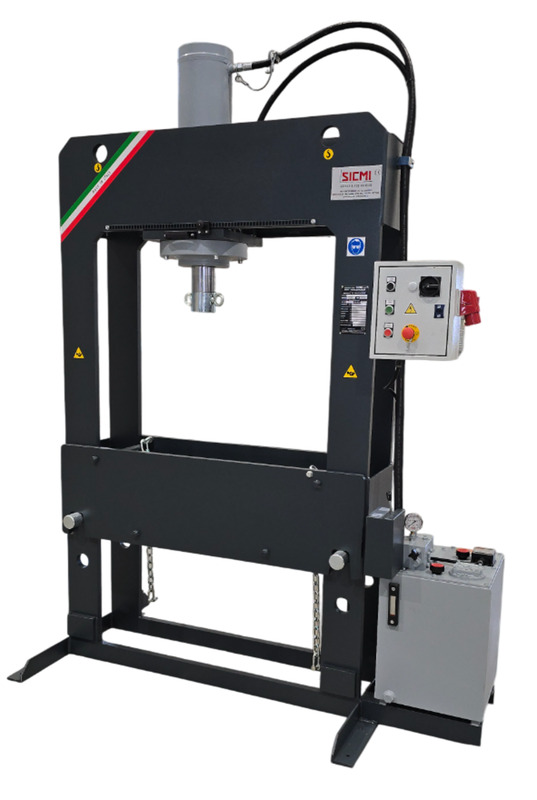

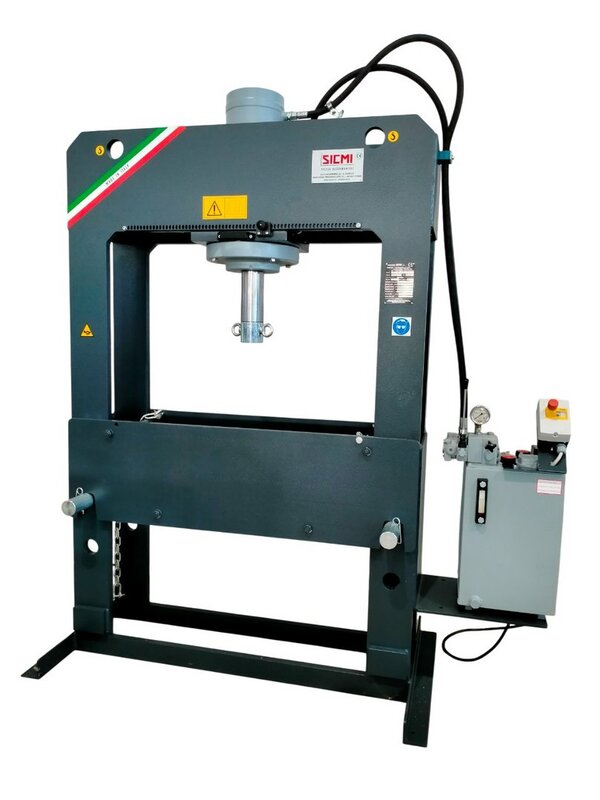

: neu : ca. 6-8 Wochen ab Auftrag : Italien : 12500 €: 240 €: 150 to: fix : 150 mm: 780 mm: 1000 mm: 1900 mm: 1200 mm: 2450 (PSS: 2600) mmThe table can be lifted with a chainHydraulic unit with motor and pumpAdjustable maximum pressureManometerEquipment compliant with CE regulations. Operating instructions in German and English.MODEL VERSIONS:PSS 150 TL: 1 speed 4 mm/s, single-hand control with lever € 12.500,00 PSS 150 L: 2 speeds 9 / 3 mm/s, single-hand control with lever € 13.500,00 PSS 150NC: 2 speeds29 / 4 mm/s, two-hand control with lever and push button € 14.500,00 PSS 150: same as PSS 100 NC but with stroke 500 mm € 18.000,00The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
