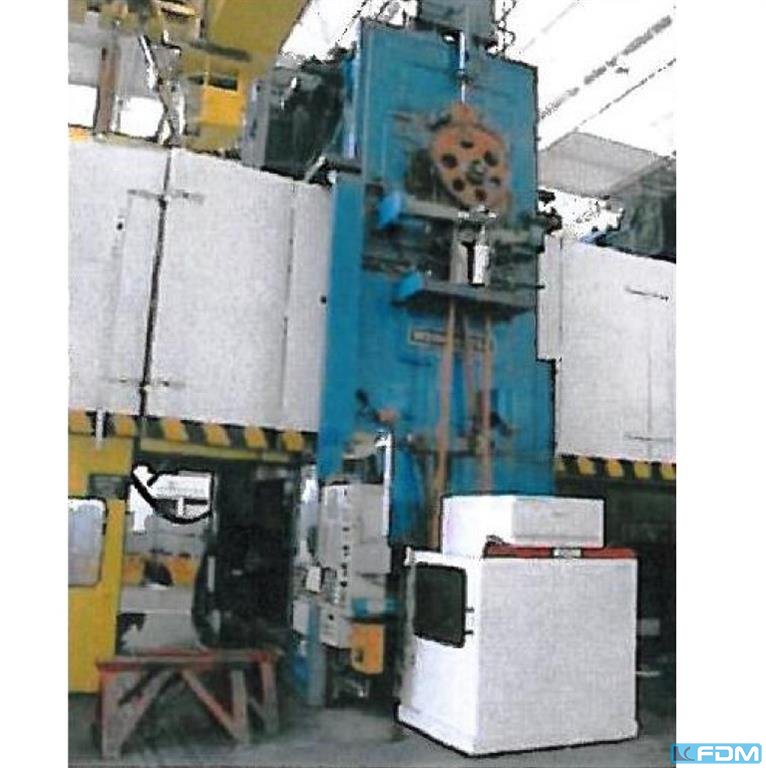

WEINGARTEN VK 500.34.85 Double Column Press - mechanical
usatoVenditore verificato
Richiedi il prezzo
Direttamente al venditore
1 / 1
Dati tecnici
· ID 170392467Macchine usate
- Condizioni
- usato
- Anno di costruzione
- 1974
- Ubicazione
- Lager Haiger
Identifikation
ProduttoreWEINGARTEN
ModelloVK 500.34.85
Numero articolo1050-113101
Technik
Quantità1
Descrizione
pressure:500 t
distance between columns:3400 mm
stroke:850 mm
no. of strokes:9 - 18 /min
distance table/ram, max. stroke up, adjustment up:2050 mm
table surface area:3100 x 1900 mm
table height over floor:400 mm
side window:1550 mm
ram surface:3100 x 1900 mm
ram adjustment:350 mm
pressure of drawing cushion in ram:70 t
pressure of drawing cushion in table:140 t
stroke of drawing cushion in table:0 - 250 mm
stroke of drawing cushion in ram:150 mm
height beneath floor:6,0 m
height over floor:8,3 m
weight:155,0 t
dimensions (WxDxH):5,1 x 4,5 x 12,3 m
Kind of drive:link drive
tool changing unit:2 x
distance between columns:3400 mm
stroke:850 mm
no. of strokes:9 - 18 /min
distance table/ram, max. stroke up, adjustment up:2050 mm
table surface area:3100 x 1900 mm
table height over floor:400 mm
side window:1550 mm
ram surface:3100 x 1900 mm
ram adjustment:350 mm
pressure of drawing cushion in ram:70 t
pressure of drawing cushion in table:140 t
stroke of drawing cushion in table:0 - 250 mm
stroke of drawing cushion in ram:150 mm
height beneath floor:6,0 m
height over floor:8,3 m
weight:155,0 t
dimensions (WxDxH):5,1 x 4,5 x 12,3 m
Kind of drive:link drive
tool changing unit:2 x
